SELECT A DIAGRAM
01 - Cabinet (ye20hv3)

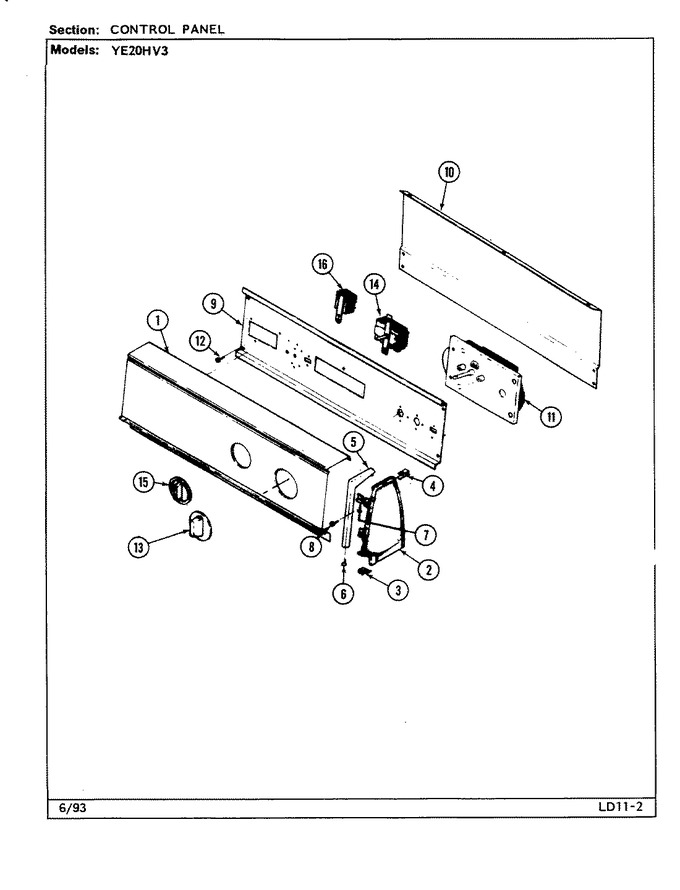

02 - Control Panel (ye20hv3)
03 - Door (ye20hv3)
04 - Heater (ye20hv3)
05 - Motor & Drive (ye20hv3)
06 - Tumbler (ye20hv3)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 2 | 25-7697 | Screw |
|
- | |||||
| 2 | 35-2669 | Cap, End (lt)(wht) |
|
- | |||||
| 2 | 35-2668 | Cap, End (rt)(wht) |
|
- | |||||
| 2 | 25-7649 | Screw |
|
- | |||||
| 2 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 5 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 5 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 9 | 53-1676 | Shield, Control |
|
- | |||||
| 10 | 35-2688 | Shield, Control Panel (rear) |
|
- | |||||
| 11 | 53-1758 | Timer |
|
- | |||||
| 12 | 25-0205 | Screw |
|
- | |||||
| 13 | 53-1671 | Timer Knob & Skirt |
|
- | |||||
| 14 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 14 | 53-0344 | Switch, Temperature |
|
- | |||||
| 15 | 35-2673 | Knob, Selector (wht) |
|
- | |||||
| 16 | 63-6743 | Resistor Assy. |
|
- | |||||
| 16 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 16 | 53-1639 | Buzzer Assy. |
|
- | |||||
| 17 | 53-2384 | Manual, Use & Care |
|
- | |||||
| 17 | 16000329 | Guide, Quick Ref. - Magic Chef |
|
- | |||||
| 18 | 53-1040 | Manual, Use & Care |
|
- |
