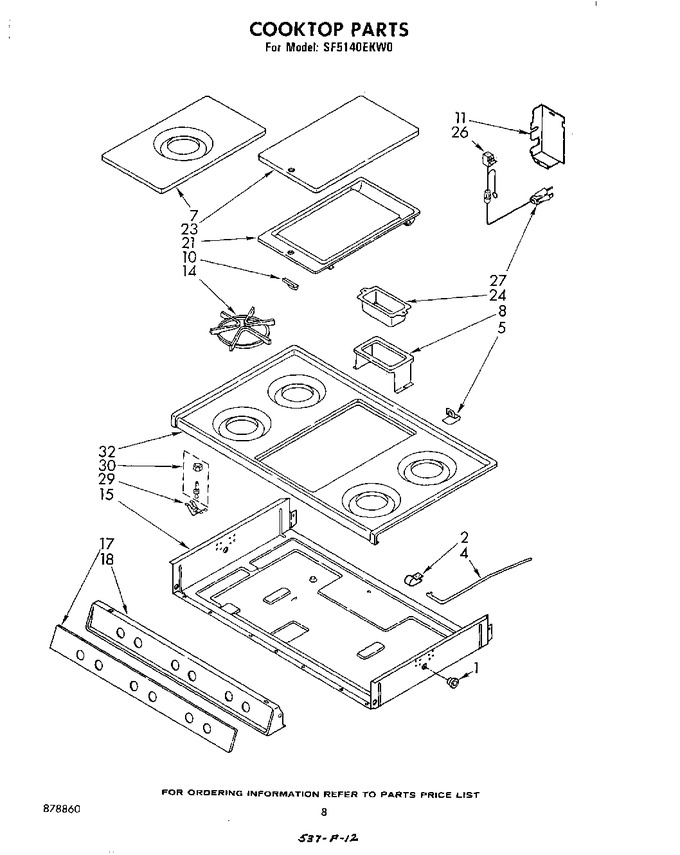

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878364		Bushing, Snap (3)		Appelez-nous	-
2	878083		Clamp, Top Stop		Appelez-nous	-
4	878098		Stop, Cook Top		Appelez-nous	-
5	878099		Spacer, Main Top		Appelez-nous	-
7	878537		Center, Cooktop (white)		Appelez-nous	-
7	878535		Center, Cooktop (almond)		Appelez-nous	-
7	878538		Top, Center Cook (harvest Gold)		Appelez-nous	-
7	879113		Top, Center Cook (toast)		Appelez-nous	-
7	879114		Top, Center Cook (platinum)		Appelez-nous	-
7	878536		Top, Center Cook (coffee)		Appelez-nous	-
8	878539		Hanger, Grease Cup		Appelez-nous	-
10	878544		Reflector, Grid Lighter		Appelez-nous	-
11	878458		Cover, Wire		Appelez-nous	-
14	878150		Grate, Burner (5)		Appelez-nous	-
15	878548		Bottom, Burner Box		Appelez-nous	-
17	878551		Inlay, Manifold Panel		Appelez-nous	-
18	879115		Panel, Manifold (toast)		Appelez-nous	-
18	878555		Panel, Manifold (harvest Gold)		Appelez-nous	-
18	879116		Panel, Manifold (platinum)		Appelez-nous	-
18	878552		Panel, Manifold (almond)		Appelez-nous	-
18	878553		Panel, Manifold (coffee)		Appelez-nous	-
18	878554		Panel, Manifold (white)		Appelez-nous	-
21	878573		Griddle		Appelez-nous	-
23	879117		Cover, Griddle (toast)		Appelez-nous	-
23	878577		Cover, Griddle (harvest Gold)		Appelez-nous	-
23	878576		Cover, Griddle (white)		Appelez-nous	-
23	878575		Cover, Griddle (coffee)		Appelez-nous	-
23	879118		Cover, Griddle (platinum)		Appelez-nous	-
23	878574		Cover, Griddle (almond)		Appelez-nous	-
24	878578		Cup, Grease		Appelez-nous	-
26	878162		Block, Disconnect Socket		Appelez-nous	-
27	878298		Cord, Extension		Appelez-nous	-
29	878164		Catch, Main Top (2)		Appelez-nous	-
30	878499		Strike, Main Top (2)		Appelez-nous	-
32	879119		Top, Main (toast)		Appelez-nous	-
32	878588		Top, Main (harvest Gold)		Appelez-nous	-
32	878587		Top, Main (white)		Appelez-nous	-
32	879120		Top, Main (platinum)		Appelez-nous	-
32	878586		Top, Main (coffee)		Appelez-nous	-
32	878585		Top, Main (almond)		Appelez-nous	-
