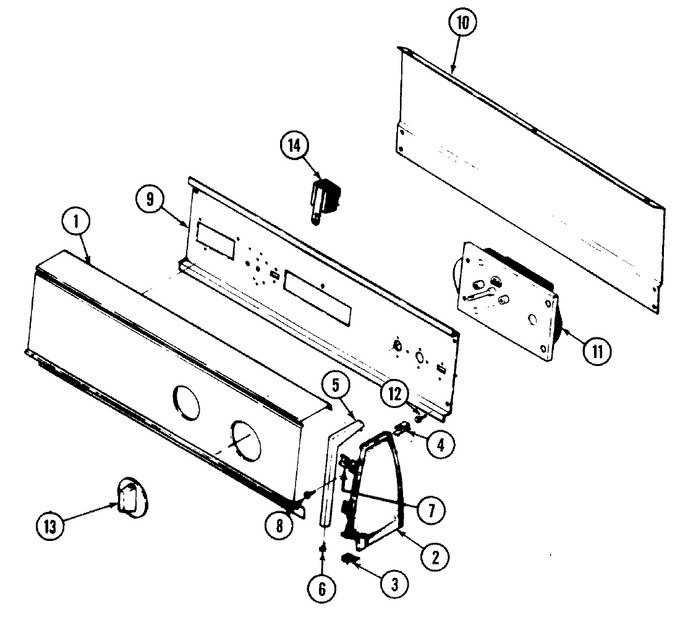

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1603		Control Panel	C	Appelez-nous	-
2	35-2488		Cap, End (lt)	C	Appelez-nous	-
2	25-7851		Speedclip, End Cap To Top	C	Appelez-nous	-
2	25-7649		Screw	C	Appelez-nous	-
2	25-7697		Screw	C	Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl	C	Appelez-nous	-
2	35-2487		Cap, End (rt)	C	Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top	C	Appelez-nous	-
3	25-7697		Screw	C	Appelez-nous	-
4	25-7852		Speedclip, Rr Shld To End Cap	C	Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)	C		Immediately	$ 6.90
5	53-0278		Trim, End Cap (lt)	C	Appelez-nous	-
5	53-0277		Trim, End Cap (rt)	C	Appelez-nous	-
6	25-7760		Screw	C	Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl	C	Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)	C		Immediately	$ 7.04
9	53-1676		Shield, Control	C	Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)	C	Appelez-nous	-
11	WP53-1810		Timer   (Replaces: 53-1810)	C			$ 340.09
11	63-6743		Resistor Assy.	C	Appelez-nous	-
12	WP33002917		Screw   (Replaces: 25-7435)	C		Immediately	$ 6.90
13	53-1533		Knob & Skirt Assy.	C	Appelez-nous	-
14	63-6731		Buzzer	C	Appelez-nous	-
14	53-1607-1		Manual, Use & Care	C	Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)	C		Immediately	$ 7.04
15	16000329		Guide, Quick Ref. - Magic Chef	C	Appelez-nous	-
