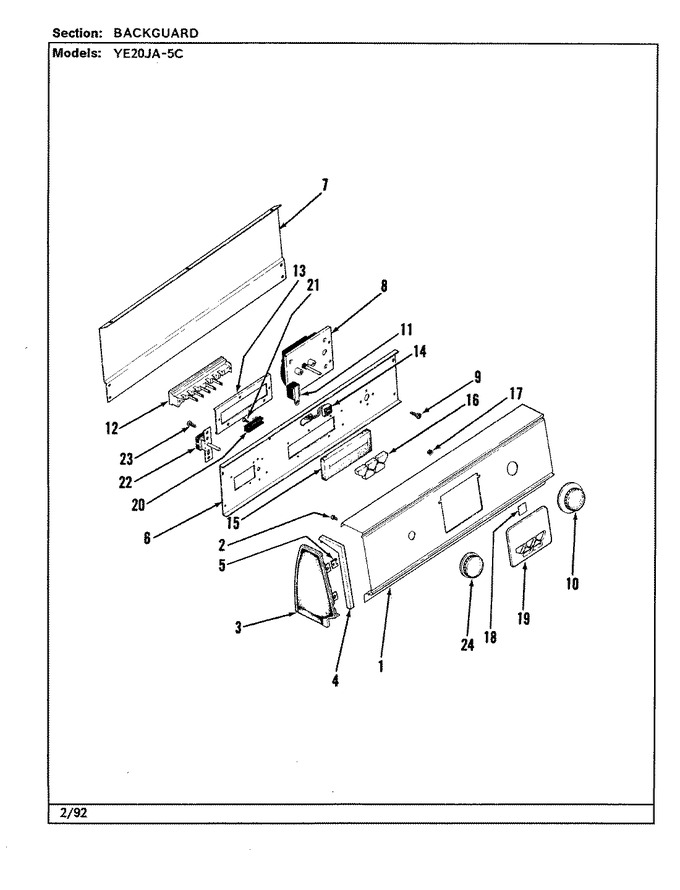

01 - Control Panel (ye20ja5c)(rev. A)
02 - Cylinder & Drive (ye20ja5c)(rev. A)
03 - Exterior (ye20ja5c)(rev. A)
04 - Heater (ye20ja5c)(rev. A)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-1819 | Control Panel | - |
|
- | ||||
| 2 | WP12990527 | Screw, Sems (Replaces: 25-3457) | - |
|
Immediately | $ 7.15 | |||
| 2 | 25-7852 | Speedclip, Rr Shld To End Cap | - |
|
- | ||||
| 2 | WP33002917 | Screw (Replaces: 25-7435) | - |
|
Immediately | $ 6.90 | |||
| 3 | 35-2488 | Cap, End (lt) | - |
|
- | ||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | - |
|
- | ||||
| 3 | 25-7697 | Screw | - |
|
- | ||||
| 3 | 35-2487 | Cap, End (rt) | - |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | - |
|
- | ||||
| 3 | 34-9487 | Plate, Reinforcement | - |
|
- | ||||
| 3 | 25-7649 | Screw | - |
|
- | ||||
| 4 | 53-0278 | Trim, End Cap (lt) | - |
|
- | ||||
| 4 | 25-7760 | Screw | - |
|
- | ||||
| 4 | 53-0277 | Trim, End Cap (rt) | - |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 25-3092) | - |
|
Immediately | $ 7.04 | |||
| 5 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | - |
|
- | ||||
| 6 | 35-2680 | Control Shield | - |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: 25-3092) | - |
|
Immediately | $ 7.04 | |||
| 7 | WP12990527 | Screw, Sems (Replaces: 25-3457) | - |
|
Immediately | $ 7.15 | |||
| 7 | 35-2688 | Shield, Control Panel (rear) | - |
|
- | ||||
| 8 | 63-6743 | Resistor Assy. | - |
|
- | ||||
| 8 | 53-1816 | Timer | A |
|
- | ||||
| 8 | 53-1300 | Timer | - |
|
- | ||||
| 9 | 63-5685 | Timer Motor | - |
|
- | ||||
| 9 | 25-0205 | Screw | - |
|
- | ||||
| 10 | 53-1529 | Timer Knob & Skirt Assy | - |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: 25-3092) | - |
|
Immediately | $ 7.04 | |||
| 11 | 53-1666 | Buzzer - Adjustable | - |
|
- | ||||
| 12 | 53-1668 | Switch - 7 Pushbutton | - |
|
- | ||||
| 13 | 33-6620 | Bracket | - |
|
- | ||||
| 13 | 25-7712 | Screw | - |
|
- | ||||
| 13 | WP90767 | Screw (Replaces: 25-3092) | - |
|
Immediately | $ 7.04 | |||
| 14 | 35-0691-02 | Signal Light | - |
|
- | ||||
| 14 | 35-0691-01 | Signal Light | - |
|
- | ||||
| 14 | 35-0691-03 | Signal Light | - |
|
- | ||||
| 14 | 35-0691-07 | Light Assy | - |
|
- | ||||
| 15 | 33-8541 | Switch Pad | - |
|
- | ||||
| 16 | 53-1271-01 | Push Button | - |
|
- | ||||
| 16 | 53-1271-02 | Push Button | - |
|
- | ||||
| 16 | 53-1271-04 | Push Button | - |
|
- | ||||
| 16 | 53-1271-05 | Pushbutton (on) | - |
|
- | ||||
| 16 | 53-1271-06 | Pushbutton (off) | - |
|
- | ||||
| 16 | 53-1271-03 | Push Button | - |
|
- | ||||
| 17 | 25-7882 | Palnut | - |
|
- | ||||
| 18 | 35-0690 | Lens | - |
|
- | ||||
| 19 | 53-1665 | Lens Dryer | - |
|
- | ||||
| 19 | 53-1635 | Bezel (black) 7 Position | - |
|
- | ||||
| 20 | 35-2257 | Terminal Block | - |
|
- | ||||
| 21 | 25-7649 | Screw | - |
|
- | ||||
| 22 | 53-0346 | Switch, Wrinkle Out | - |
|
- | ||||
| 23 | WP90767 | Screw (Replaces: 25-3092) | - |
|
Immediately | $ 7.04 | |||
| 24 | 53-1680 | Knob, Selector | - |
|
- | ||||
| 25 | 53-2087 | Manual, Use & Care | - |
|
- |
