02 - Oven , Literature
03 - Manifold
04 - Door
05 - Cooktop
06 - Backguard
New Model Search:

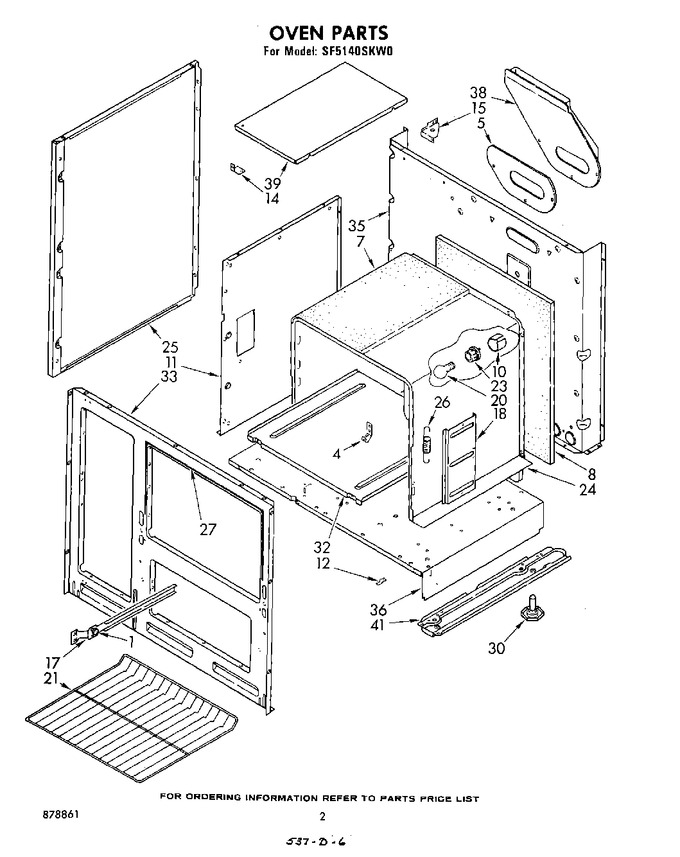

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 878077 | Bearing, Roller (4) |
|
- | |||||
| 4 | 98005642 | Clip, Thermostat Bulb (Replaces: 878081) |
|
Immediately | $ 74.64 | ||||
| 5 | 878530 | Gasket, Vent Deflector |
|
- | |||||
| 7 | WPW10208653 | Insulation, Oven Wrap (Replaces: 878533) |
|
Immediately | $ 49.92 | ||||
| 8 | WPW10208653 | Insulation, Oven Back (Replaces: 878534) |
|
Immediately | $ 49.92 | ||||
| 10 | 878103 | Sleeve, Light Hole |
|
- | |||||
| 11 | 878540 | Side, Compartment |
|
- | |||||
| 12 | 878107 | Clip, Oven Bottom Plate (2) |
|
- | |||||
| 14 | 878543 | Support, Compartment Shelf |
|
- | |||||
| 15 | 878717 | Bracket, Corner Support (right Side) |
|
- | |||||
| 15 | 878718 | Bracket, Corner Support (left Side) |
|
- | |||||
| 17 | 878114 | Track, Broiler (left Side) |
|
- | |||||
| 17 | 878113 | Track, Broiler (right Side) |
|
- | |||||
| 18 | 878117 | Cover, Hinge (2) |
|
- | |||||
| 20 | 8009 | Bulb, Oven Light (Replaces: 878122) |
|
Immediately | $ 16.80 | ||||
| 21 | 878546 | Rack, Oven (2) |
|
- | |||||
| 23 | 878124 | Socket, Oven Light |
|
- | |||||
| 25 | 878128 | Panel, End (2) (white) |
|
- | |||||
| 25 | 878129 | Panel, End (2) (almond) |
|
- | |||||
| 25 | 878461 | Panel, End (2) (coffee) |
|
- | |||||
| 25 | 878462 | Panel, End (2) (harvest Gold) |
|
- | |||||
| 25 | 879081 | Panel, End (2) (toast) |
|
- | |||||
| 25 | 879082 | Panel, End (2) (platinum) |
|
- | |||||
| 26 | 878559 | Spring, Oven Door |
|
- | |||||
| 27 | 878004 | Seal, Oven Door (side (2)) |
|
- | |||||
| 27 | 878496 | Seal, Oven Door (top (1)) |
|
- | |||||
| 30 | 878417 | Screw, Leveling (4) |
|
- | |||||
| 32 | 878584 | Plate, Oven Bottom |
|
- | |||||
| 33 | 878589 | Front, Main |
|
- | |||||
| 35 | 878590 | Back, Main |
|
- | |||||
| 36 | 878591 | Bottom, Main |
|
- | |||||
| 38 | 878593 | Deflector, Vent |
|
- | |||||
| 39 | 878595 | Shelf, Compartment |
|
- | |||||
| 41 | 878861 | List, Repair Parts |
|
- | |||||
| 41 | 878056 | Diagram, Wiring |
|
- | |||||
| 41 | 878064 | Instructions, Installation |
|
- | |||||
| 41 | 878181 | Runner, Base (left Side) |
|
- | |||||
| 41 | 878182 | Runner, Base (right Side) |
|
- | |||||
| 41 | 878072 | Guide, Use & Care |
|
- |
