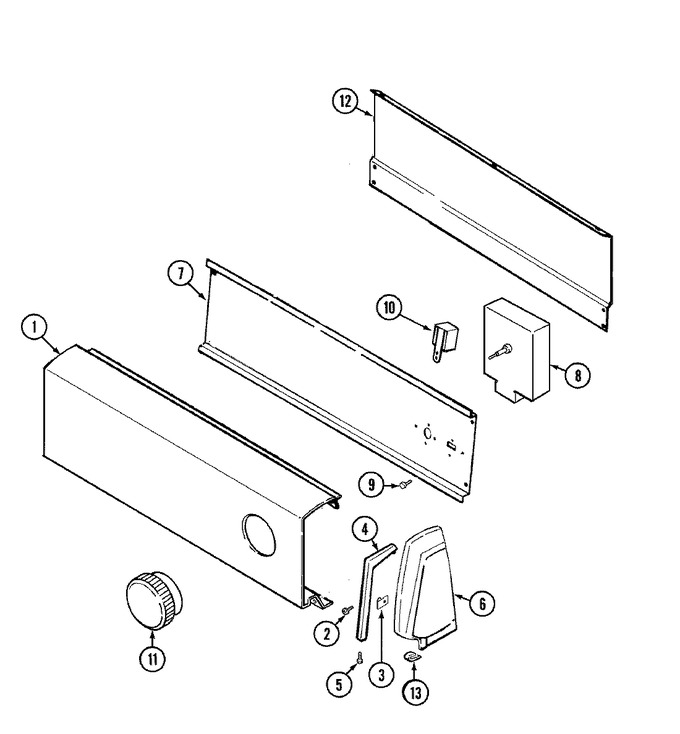

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001147 | Panel, Control | 10 |
|
- | ||||
| 2 | 25-7649 | Screw | 10 |
|
- | ||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 4 | 31001055 | Trim, Endcap (lt Wht) | 10 |
|
- | ||||
| 4 | 31001054 | Trim, Endcap (rt Wht) | 10 |
|
- | ||||
| 5 | 25-7760 | Screw | 10 |
|
- | ||||
| 6 | 35-2669 | Cap, End (lt)(wht) | 10 |
|
- | ||||
| 6 | 35-2668 | Cap, End (rt)(wht) | 10 |
|
- | ||||
| 7 | 31001193 | Pad, Shield | 10 |
|
- | ||||
| 7 | 31001128 | Shield, Control | 10 |
|
- | ||||
| 8 | 63-6743 | Resistor Assy. | 10 |
|
- | ||||
| 8 | 31001108 | Timer | 10 |
|
- | ||||
| 9 | WP90767 | Screw (Replaces: 31001119) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | 53-2502 | Knob & Skirt Assy. | 10 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 12 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 13 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 14 | 31001050 | Manual, Use & Care | 10 |
|
- | ||||
| 14 | 31001231 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
