01 - Control Panel (rev. A-b)


02 - Control Panel (rev. C)

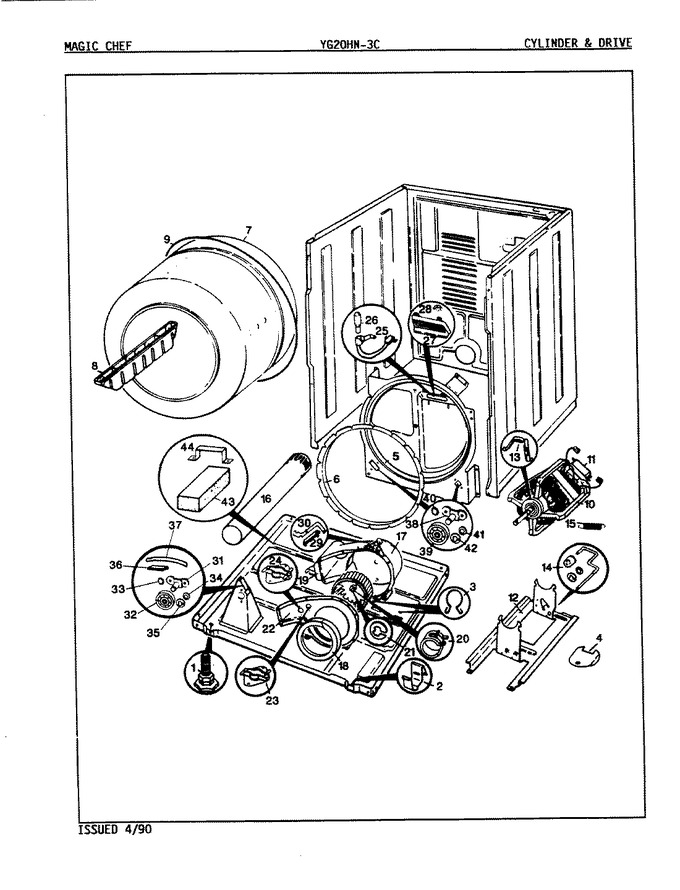

03 - Cylinder & Drive (rev. A-b)


04 - Gas Carrying (rev. A-b)


05 - Gas Carrying (rev. C)


06 - Motor & Drive (rev. C)


07 - Tumbler (rev. C)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11117769		Leg, Leveling   (Replaces: 63-5519)			Immediately	$ 16.61
2	53-0120		Clip, Front Panel				$ 11.32
3	16515		Clip, Wiring   (Replaces: 25-7027)				$ 17.60
4	53-0153		Shield, Wiring		Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-7741)			Immediately	$ 7.04
5	Y02100001		Bulkhead		Appelez-nous	-
5	WP681414		Screw   (Replaces: 25-7733)			Immediately	$ 7.07
6	WP31001637		Seal Assy (gray)   (Replaces: 53-0282)				$ 30.62
7	53-1250		Cylinder (w/baffle)		Appelez-nous	-
8	WP3196164		Screw   (Replaces: 25-7759)			Immediately	$ 7.82
8	Y02100002		Baffle (wht)		Appelez-nous	-
9	341241		Cylinder Belt   (Replaces: 53-1080)			Immediately	$ 16.34
9	LA-1004		Motor Mtg. Kit (dryer)		Appelez-nous	-
10	53-1041		Motor Asm		Appelez-nous	-
11	53-0936		Motor		Appelez-nous	-
12	53-0852		Motor Bracket		Appelez-nous	-
12	25-7811		Screw		Appelez-nous	-
13	25-7674		Screw		Appelez-nous	-
13	WP660658		Clamp, Motor   (Replaces: 53-0214)				$ 7.05
14	53-0764		Idler Arm		Appelez-nous	-
14	53-1650		Idler Assy	B	Appelez-nous	-
14	WP31001344		Pulley, Idler   (Replaces: 53-1628)	B		Immediately	$ 42.91
15	53-0207		Idler Spring		Appelez-nous	-
15	53-1648		Idler Spring	B	Appelez-nous	-
16	53-0134		Duct, Exhaust		Appelez-nous	-
16	WP90767		Screw   (Replaces: 25-2134)			Immediately	$ 7.04
17	53-0774		Blower Housing		Appelez-nous	-
18	12001324		Seal, Blower Housing   (Replaces: 53-0203)				$ 187.37
19	53-0106		Blower Wheel				$ 58.02
20	WP312967		Clamp   (Replaces: 25-7823)			Immediately	$ 10.68
21	25-7855		Ring, Retaining				$ 8.67
22	WP90767		Screw   (Replaces: 25-2134)			Immediately	$ 7.04
22	WP33002917		Screw   (Replaces: 25-7807)			Immediately	$ 6.90
22	53-1024		Blower Cover		Appelez-nous	-
22	53-1026		Guide, Vane Inlet		Appelez-nous	-
23	WP53-1107		Thermostat, Control (146/121)   (Replaces: 53-1107)				$ 81.25
24	WP90767		Screw   (Replaces: 25-2134)			Immediately	$ 7.04
24	53-0170		Thermostat, Lo-limit (120/110)		Appelez-nous	-
25	53-0152		Lamp Socket		Appelez-nous	-
26	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
26	53-0570		Cyl Light Bulb		Appelez-nous	-
28	LA-1006		Glide Kit, Tumbler			Immediately	$ 25.12
28	WP3195558		Clip, Push-on   (Replaces: 25-3562)				$ 7.68
29	WP31001356		Rh Gld Cushion   (Replaces: 53-0182)				$ 76.16
30	WP31001469		Rh Cyl Glide   (Replaces: 53-0183)				$ 66.66
31	W10124350		Not Required Part Or See Note		Appelez-nous	-
32	W10124350		Not Required Part Or See Note		Appelez-nous	-
33	W10124350		Not Required Part Or See Note		Appelez-nous	-
34	W10124350		Not Required Part Or See Note		Appelez-nous	-
35	W10124350		Not Required Part Or See Note		Appelez-nous	-
36	WP31001356		Lh Glide Cushion   (Replaces: 53-0723)				$ 76.16
37	LA-1008		Rr Roller Kit				$ 66.73
37	WP31001470		Lh Cyl Glide   (Replaces: 53-0185)				$ 67.36
38	WP53-0197		Support Assy.-cylinder Rear   (Replaces: 53-0197)				$ 81.21
38	WP3351614		Screw   (Replaces: 25-7101)			Immediately	$ 6.26
39	53-0642		Cyl Roller		Appelez-nous	-
40	25-7813		Spacer		Appelez-nous	-
41	25-7814		Washer				$ 5.33
42	WP25-7854		Ring, Retaining   (Replaces: 25-7854)				$ 10.68
43	53-0645		Counterweight		Appelez-nous	-
44	53-0644		Bracket		Appelez-nous	-
