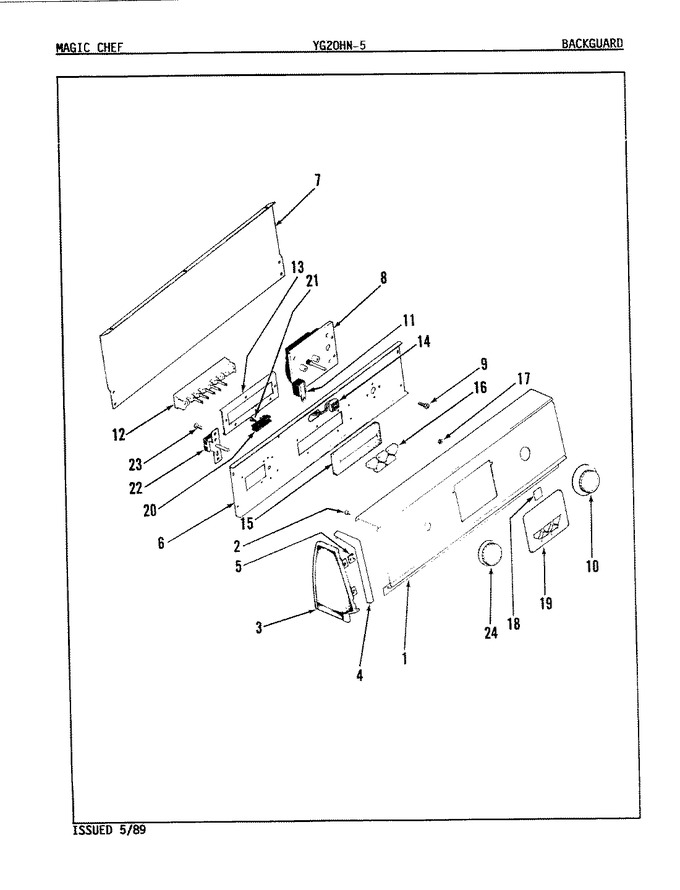

01 - Control Panel
02 - Cylinder & Drive
03 - Exterior
04 - Gas Carrying
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-1274 | Control Panel |
|
- | |||||
| 2 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 2 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 2 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7649 | Screw |
|
- | |||||
| 3 | 53-0265 | Lh Endcap |
|
- | |||||
| 3 | 53-0264 | Rh Endcap |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 3 | 34-9487 | Plate, Reinforcement |
|
- | |||||
| 4 | 25-7760 | Screw |
|
- | |||||
| 4 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 4 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 5 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 5 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 6 | 35-0686-1 | Control Shield |
|
- | |||||
| 7 | 53-0268 | Rear Shield |
|
- | |||||
| 7 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 7 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 8 | 53-1300 | Timer |
|
- | |||||
| 9 | 25-0205 | Screw |
|
- | |||||
| 10 | 53-1529 | Timer Knob & Skirt Assy |
|
- | |||||
| 11 | 63-5685 | Timer Motor |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 11 | 63-6731 | Buzzer |
|
- | |||||
| 12 | 53-0856 | Pb Switch |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 13 | 33-6620 | Bracket |
|
- | |||||
| 13 | 25-7712 | Screw |
|
- | |||||
| 14 | 35-0691-03 | Signal Light |
|
- | |||||
| 14 | 35-0691-02 | Signal Light |
|
- | |||||
| 14 | 35-0691-01 | Signal Light |
|
- | |||||
| 15 | 33-8541 | Switch Pad |
|
- | |||||
| 16 | 53-1271-01 | Push Button |
|
- | |||||
| 16 | 53-1271-03 | Push Button |
|
- | |||||
| 16 | 53-1271-04 | Push Button |
|
- | |||||
| 16 | 53-1271-02 | Push Button |
|
- | |||||
| 17 | 25-7882 | Palnut |
|
- | |||||
| 18 | 35-0690 | Lens |
|
- | |||||
| 19 | 53-0857 | Lens |
|
- | |||||
| 19 | 53-0854 | Pb Bezel |
|
- | |||||
| 20 | 35-2257 | Terminal Block |
|
- | |||||
| 21 | 25-7649 | Screw |
|
- | |||||
| 22 | 53-0346 | Switch, Wrinkle Out |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 24 | 53-1040 | Manual, Use & Care |
|
- | |||||
| 24 | 35-2185 | Knob, Selector (blk) |
|
- |
