SELECT A DIAGRAM

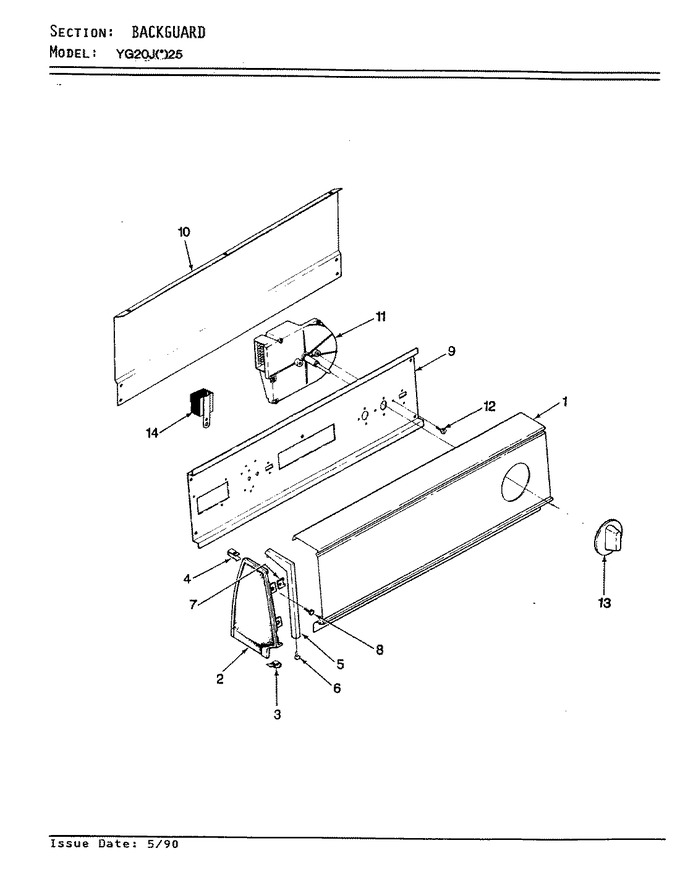

01 - Control Panel (rev. A-c)


02 - Control Panel (rev. D)


03 - Cylinder & Drive (rev. A-c)


04 - Exterior (rev. A-c)


05 - Gas Carrying (rev. A-c)


06 - Gas Carrying (rev. D)


07 - Motor & Drive (rev. D)


08 - Tumbler (rev. D)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1603		Control Panel		Appelez-nous	-
2	35-2488		Cap, End (lt)		Appelez-nous	-
2	53-0264		Rh Endcap		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
2	25-7649		Screw		Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	35-2487		Cap, End (rt)		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
5	53-0278		Trim, End Cap (lt)		Appelez-nous	-
5	53-0277		Trim, End Cap (rt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-0365		Control Shield		Appelez-nous	-
9	53-1676		Shield, Control		Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
10	53-0268		Rear Shield		Appelez-nous	-
11	53-0601		Timer Motor		Appelez-nous	-
11	53-0656		Timer		Appelez-nous	-
12	25-0205		Screw		Appelez-nous	-
13	53-1533		Knob & Skirt Assy.		Appelez-nous	-
14	63-6731		Buzzer		Appelez-nous	-
14	53-1607-1		Manual, Use & Care		Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
15	16000326		Guide, Quick Ref - Jenn-air		Appelez-nous	-
