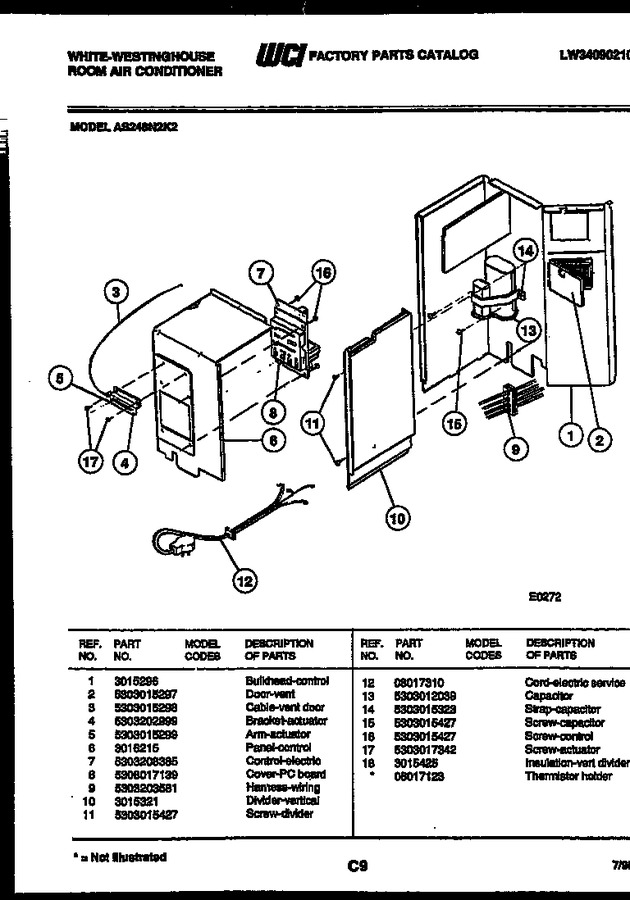

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 5303015298 | Cable - Vent Door |
|
- | |||||
| 4 | 5303202999 | Bracket-actuator |
|
- | |||||
| 5 | 5303015299 | Arm - Actuator |
|
- | |||||
| 6 | 3016215 | Panel - Control |
|
- | |||||
| 7 | 5303208385 | Control-electric |
|
- | |||||
| 8 | 5308017139 | Cover-pc Board |
|
- | |||||
| 9 | 5303203581 | Harness-wiring |
|
- | |||||
| 10 | 3015321 | Divider - Vertical |
|
- | |||||
| 11 | 5303015427 | Screw - Divider |
|
- | |||||
| 12 | 08017310 | Cord-electric Service |
|
- | |||||
| 13 | 5303012039 | Capacitor |
|
- | |||||
| 14 | 5303015323 | Strap-capacitor |
|
- | |||||
| 15 | 5303015427 | Screw-capacitor |
|
- | |||||
| 16 | 5303015427 | Screw-control |
|
- | |||||
| 17 | 5303017342 | Screw-actuator |
|
- | |||||
| 18 | 3015425 | Insulation-vert. Divider |
|
- | |||||
| *34520 | 08017123 | Thermistor Holder |
|
- |
