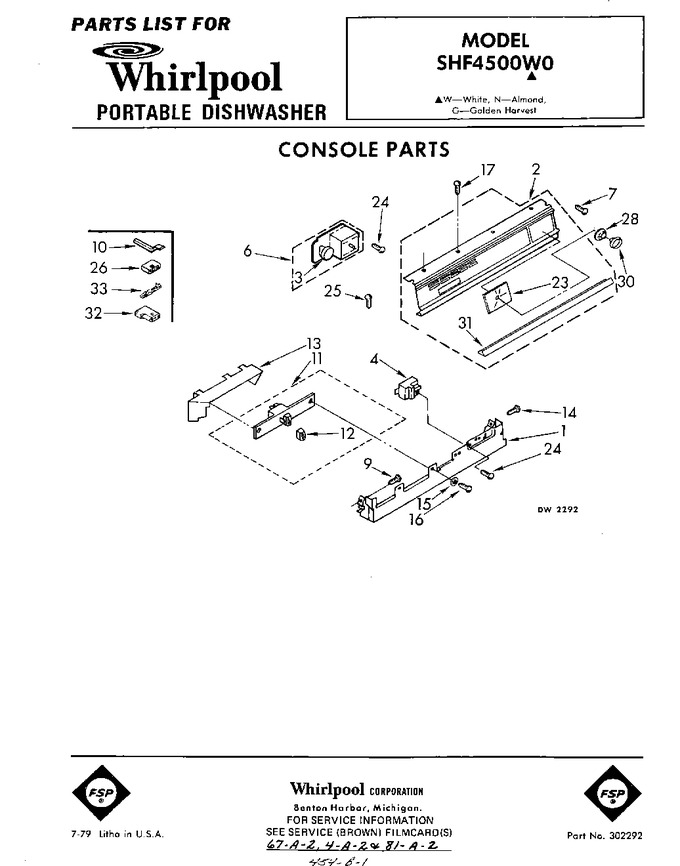

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300754		Bracket, Control		Appelez-nous	-
2	302366		Console Assembly		Appelez-nous	-
3	301074		Motor, Timer		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
6	301590		Timer, 60 Hz.		Appelez-nous	-
7	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
9	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
10	302162		Retainer, Harness		Appelez-nous	-
11	302346		Switch, Pushbutton		Appelez-nous	-
12	302338		Button (2)		Appelez-nous	-
13	300242		Barrier, Pushbutton Switch		Appelez-nous	-
14	WP488787		Screw, 8-18 X 1/2 (2)   (Replaces: 9418000)				$ 9.52
15	301503		Washer (3)		Appelez-nous	-
16	301483		Screw, 8-32 (3)		Appelez-nous	-
17	162400		Screw		Appelez-nous	-
23	302400		Insert		Appelez-nous	-
24	339494		Screw		Appelez-nous	-
25	WP489128		Screw,   (Replaces: 98209)				$ 9.79
26	719585		Connector, Terminal (motor)		Appelez-nous	-
28	300996		Dial, Indicator		Appelez-nous	-
30	301010		Knob, Timer		Appelez-nous	-
31	301624		Trim, Console		Appelez-nous	-
32	353425		Receptacle (wetting Agent Dispenser)		Appelez-nous	-
33	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
