SELECT A DIAGRAM

01 - Console


02 - Cabinet


03 - Door


04 - Tub


05 - Dishrack , Lit/optional


06 - Pump And Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

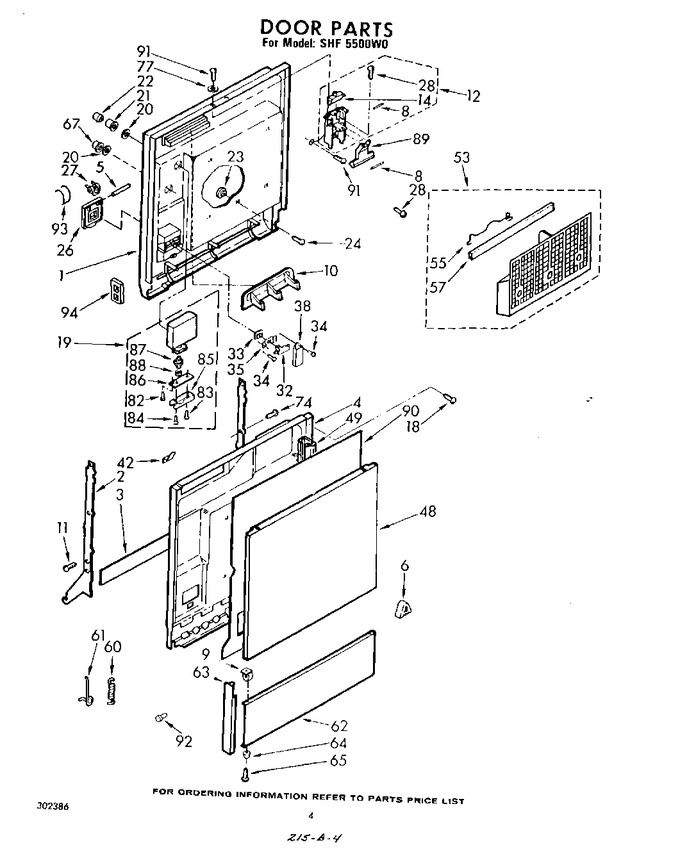

1	302035		Door, Inner (includes Illus. 4)		Appelez-nous	-
2	300225		Support, Door (l.h.)		Appelez-nous	-
2	300226		Support, Door (r.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	302031		Liner, Door		Appelez-nous	-
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	301596		Retainer		Appelez-nous	-
8	300234		Pin, Pivot		Appelez-nous	-
9	356592		Grommet		Appelez-nous	-
10	300246		Screen, Vent		Appelez-nous	-
11	162400		Screw		Appelez-nous	-
12	300235		Latch Assembly		Appelez-nous	-
14	16600		Switch, Interlock   (Replaces: 300232)				$ 6.18
18	WP488729		Screw, 8 X 1/2   (Replaces: 301458)			Immediately	$ 7.01
19	301935		Dispenser, Wetting Agent		Appelez-nous	-
20	713080		Washer		Appelez-nous	-
21	718575		Nut, 1-14		Appelez-nous	-
22	718577		Cap		Appelez-nous	-
23	300239		Button, Retainer		Appelez-nous	-
24	300250		Screw, 8-18 X 3/8		Appelez-nous	-
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
28	301582		Screw, 6-32 X 1		Appelez-nous	-
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
34	718250		Screw, 8 X 1/2		Appelez-nous	-
35	300104		Retainer		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
42	718533		Clip, Ground		Appelez-nous	-
48	301759		Panel, Front (coffee)		Appelez-nous	-
48	301756		Panel, Front (almond)		Appelez-nous	-
48	301758		Panel, Front (golden Harvest)		Appelez-nous	-
48	712557		Panel, Front (white)		Appelez-nous	-
48	301757		Panel, Front (new Avocado)		Appelez-nous	-
49	301019		Trim, Door (l.h.)				$ 0.17
49	301020		Trim, Door (r.h.)		Appelez-nous	-
53	301994		Basket Silverware Assembly		Appelez-nous	-
55	300086		Handle, Basket		Appelez-nous	-
57	717528		Trim, Basket		Appelez-nous	-
60	716425		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
62	301760		Panel, Access (almond)		Appelez-nous	-
62	301761		Panel, Access (coffee)		Appelez-nous	-
62	301762		Panel, Access (new Avocado)		Appelez-nous	-
62	301763		Panel, Access (golden Harvest)		Appelez-nous	-
62	719591		Panel, Access (white)		Appelez-nous	-
63	715263		Cap, End (l.h.)		Appelez-nous	-
63	715262		Cap, End (r.h.)		Appelez-nous	-
64	719581		Foot		Appelez-nous	-
65	719266		Screw, 8-18 X 5/8		Appelez-nous	-
67	718576		Cap, Drip		Appelez-nous	-
74	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
77	300237		Washer		Appelez-nous	-
82	WP98165		Screw   (Replaces: 98165)				$ 7.20
83	98617		Screw		Appelez-nous	-
84	WP488163		Screw, 8-18 X 1   (Replaces: 98810)				$ 6.79
85	718646		Acutator Assembly		Appelez-nous	-
86	718596		Plate		Appelez-nous	-
87	718595		Diaphragm Assembly		Appelez-nous	-
88	718592		Spring		Appelez-nous	-
89	300230		Lever, Release		Appelez-nous	-
90	300801		Spacer		Appelez-nous	-
91	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
92	715779		Bumper (2)		Appelez-nous	-
93	301857		Clip, Wire		Appelez-nous	-
94	302159		Barrier, Detergent Dispenser		Appelez-nous	-
