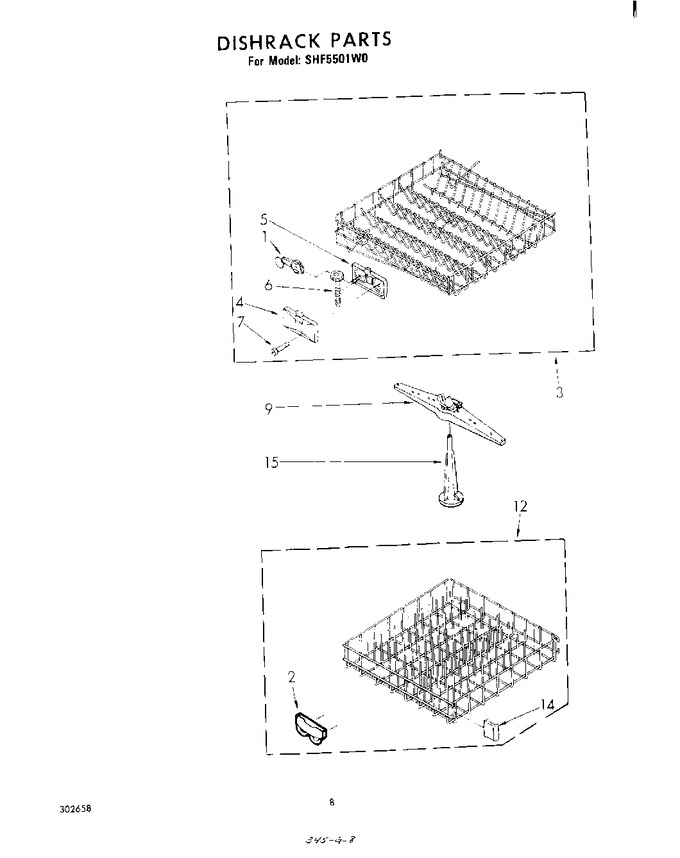

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302025		Wheel & Gear Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Shroud Assembly (4)   (Replaces: 717509)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 302529)			Immediately	$ 182.83
4	302029		Cover, Housing		Appelez-nous	-
5	302028		Housing, Gear			Immediately	$ 108.39
6	302026		Worm, Adjustable		Appelez-nous	-
7	WP9741232		Screw   (Replaces: 301077)			Immediately	$ 4.56
9	302020		Spray Arm Assembly		Appelez-nous	-
12	W10311986		Dishrack, Lower   (Replaces: 302405)			Immediately	$ 169.33
14	719964		Bumper (2)		Appelez-nous	-
15	302030		Tower		Appelez-nous	-
