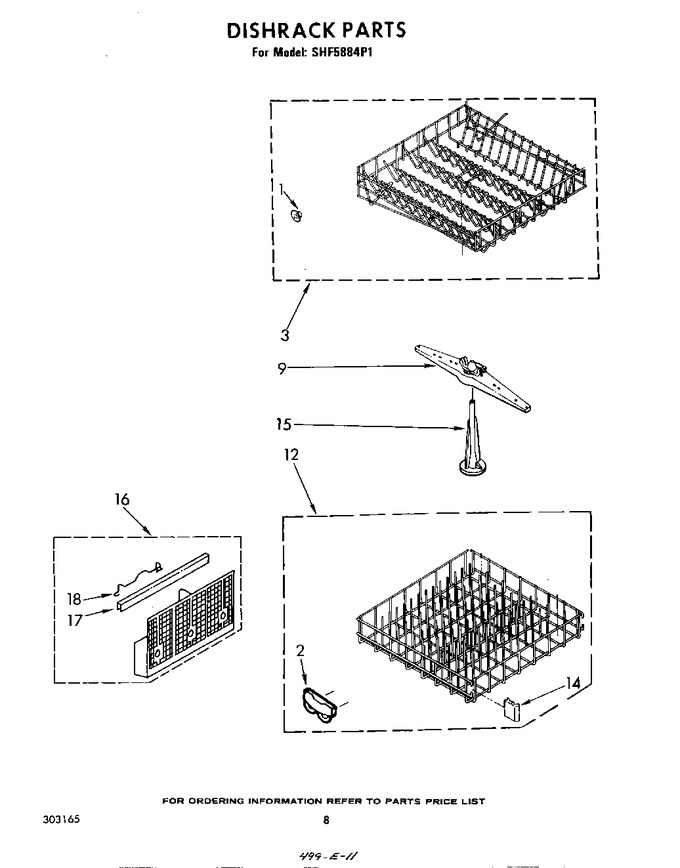

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300995		Wheel & Gear Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Shroud Assembly (4)   (Replaces: 717509)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 302986)			Immediately	$ 182.83
9	302813		Spray Arm, Upper		Appelez-nous	-
12	W10311986		Dishrack, Lower   (Replaces: 302107)			Immediately	$ 169.33
14	719964		Bumper (2)		Appelez-nous	-
15	302030		Tower		Appelez-nous	-
16	301994		Silverware Basket		Appelez-nous	-
17	717528		Trim, Basket		Appelez-nous	-
18	300086		Handle, Basket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
