SELECT A DIAGRAM

01 - Console


02 - Cabinet


03 - Door


04 - Tub , Literature And Optional


05 - Dishrack And Panel


06 - Pump And Motor


07 - Wiring Harness

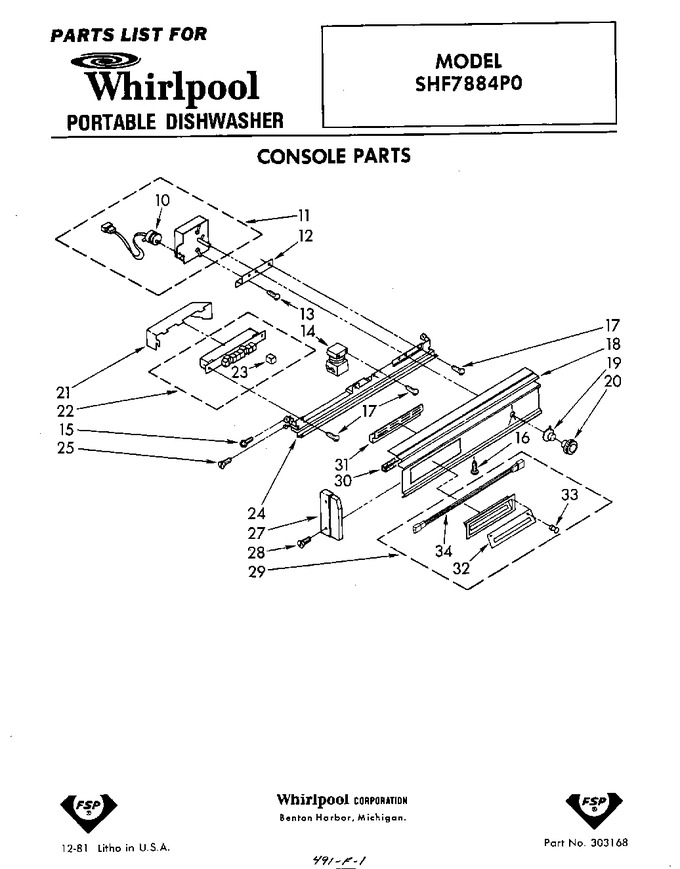

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	301062		Motor, Timer		Appelez-nous	-
11	302844		Timer, Disconnect		Appelez-nous	-
12	301875		Bracket, Timer		Appelez-nous	-
13	WP356418		Screw   (Replaces: 96435)				$ 7.13
14	300516		Relay, Start (alternate)		Appelez-nous	-
14	301620		Relay, Start (alternate)		Appelez-nous	-
14	301536		Relay, Start (alternate)		Appelez-nous	-
15	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
16	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
17	WP489128		Screw (6)   (Replaces: 98209)				$ 9.79
18	303064		Panel, Escutcheon		Appelez-nous	-
19	302067		Dial, Indicator		Appelez-nous	-
20	302180		Knob, Timer		Appelez-nous	-
21	300242		Barrier, Pushbutton Switch		Appelez-nous	-
22	303021		Switch, Pushbutton		Appelez-nous	-
23	301978		Button (7)		Appelez-nous	-
24	300750		Bracket, Control		Appelez-nous	-
25	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
27	303005		End Cap, R.h.		Appelez-nous	-
27	303006		Cap, End (l.h.)		Appelez-nous	-
28	W10759522		Screw, 8-18   (Replaces: 162402)				$ 6.98
29	303034		Bezel Assembly		Appelez-nous	-
30	719860		Baffle		Appelez-nous	-
31	301878		Grille, Vent		Appelez-nous	-
32	302842		Escutcheon, Pushbutton		Appelez-nous	-
33	302840		Lens, Red		Appelez-nous	-
34	302857		Light Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
