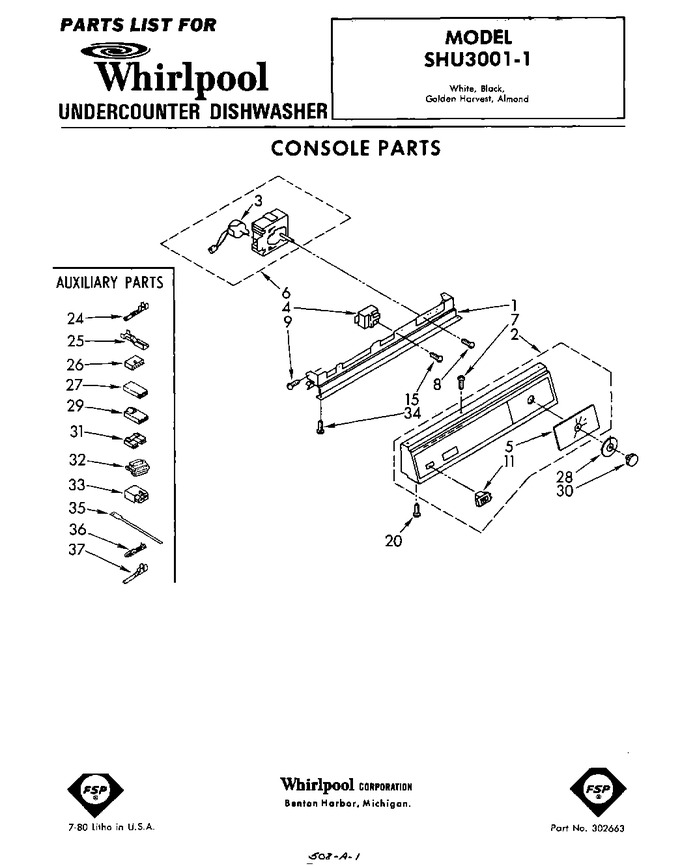

SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300754		Bracket, Console		Appelez-nous	-
2	301634		Panel, Escutcheon		Appelez-nous	-
3	301062		Motor, Timer		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
5	302139		Insert, Console		Appelez-nous	-
6	302577		Timer		Appelez-nous	-
7	162400		Screw (4)		Appelez-nous	-
8	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
9	WP488627		Screw, 8-18 X 1/2 (2)   (Replaces: 300128)				$ 6.81
11	WP4314961		Switch, Rocker   (Replaces: 302100)				$ 80.53
15	WP489128		Screw,   (Replaces: 98209)				$ 9.79
20	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
24	686591		Terminal		Appelez-nous	-
25	352088		Terminal, Female				$ 5.83
26	719585		Connector, Terminal (motor)		Appelez-nous	-
27	301219		Connector Block		Appelez-nous	-
28	300996		Dial, Indicator		Appelez-nous	-
29	358736		Insulator .250 Terminal		Appelez-nous	-
30	301010		Knob		Appelez-nous	-
31	300708		Connector		Appelez-nous	-
32	W10876590		Disconnect Block, Timer   (Replaces: 352089)				$ 11.48
33	717252		Receptacle, Terminal Two-way		Appelez-nous	-
34	WP487353		Screw, 6-20 X 3/8 (3)   (Replaces: 301502)				$ 6.81
35	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
36	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
37	94613		Terminal, (male)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
