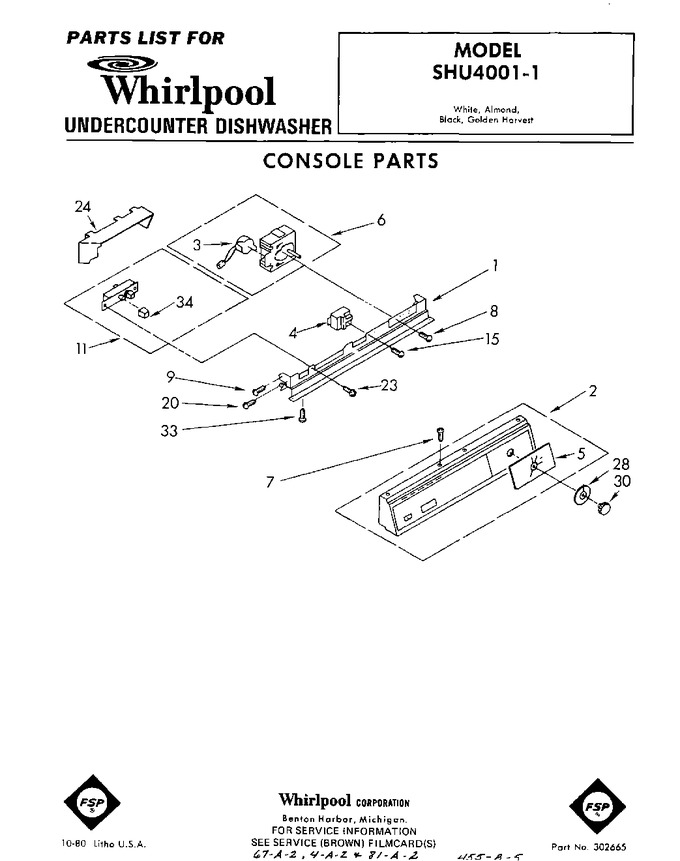

SELECT A DIAGRAM

01 - Console


02 - Tub , Not Illustrated


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300752		Bracket, Console		Appelez-nous	-
2	301635		Console Assembly		Appelez-nous	-
3	301062		Motor, Timer		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
5	302139		Insert, Console		Appelez-nous	-
6	302577		Timer		Appelez-nous	-
7	162400		Screw, 6-20 X 3/8 (4)		Appelez-nous	-
8	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
9	WP488627		Screw, 8-18 X 1/2 (2)   (Replaces: 300128)				$ 6.81
11	302099		Switch, Pushbutton		Appelez-nous	-
15	WP489128		Screw (2)   (Replaces: 98209)				$ 9.79
20	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
23	WP489128		Screw, 8-32 (2)   (Replaces: 98209)				$ 9.79
24	300242		Barrier, Pushbutton Switch		Appelez-nous	-
28	300996		Dial, Indicator		Appelez-nous	-
30	301010		Knob		Appelez-nous	-
33	WP487353		Screw (3)   (Replaces: 301502)				$ 6.81
34	301977		Button (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
