SELECT A DIAGRAM

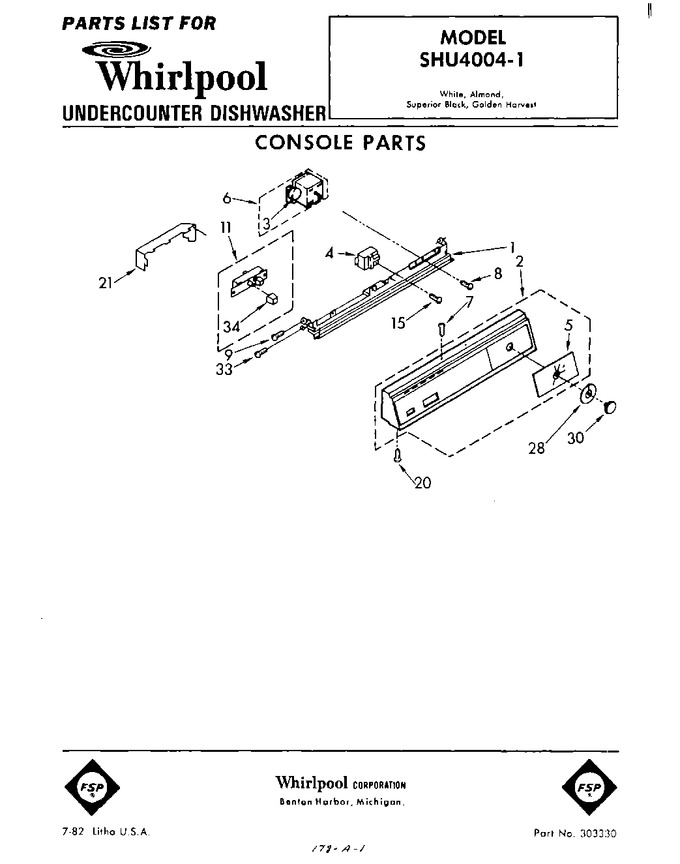

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300752		Bracket, Console		Appelez-nous	-
2	303008		Panel, Escutcheon		Appelez-nous	-
3	301062		Motor, Timer		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
5	303001		Insert, Console		Appelez-nous	-
6	302851		Timer		Appelez-nous	-
7	W10759522		Screw, 8-15 X 3/4 (4)   (Replaces: 162402)				$ 6.98
8	WP356418		Screw   (Replaces: 96435)				$ 7.13
9	WP488627		Screw, 8-18 X 1/2 (2)   (Replaces: 300128)				$ 6.81
11	302099		Switch, Pushbutton		Appelez-nous	-
15	WP489128		Screw (4)   (Replaces: 98209)				$ 9.79
20	WP487353		Screw, 6-20 X 1/2 (3)   (Replaces: 301502)				$ 6.81
21	303129		Barrier, Pushbutton		Appelez-nous	-
28	300996		Dial, Indicator		Appelez-nous	-
30	301010		Knob		Appelez-nous	-
33	303090		Screw, 8-18 X 5/8 (2)		Appelez-nous	-
34	301977		Button (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
