SELECT A DIAGRAM

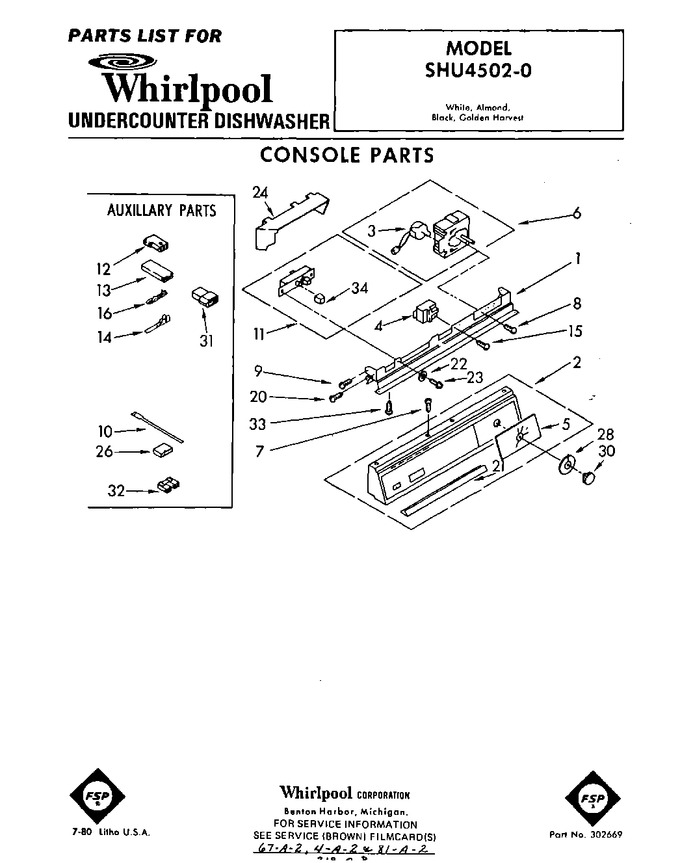

01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Dishrack


05 - Pump And Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300754		Bracket, Console		Appelez-nous	-
2	302365		Console Assembly		Appelez-nous	-
3	301062		Motor, Timer		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
5	302400		Insert, Console		Appelez-nous	-
6	302588		Timer		Appelez-nous	-
7	162400		Screw, 6-20 X 3/8		Appelez-nous	-
8	339494		Screw (2)		Appelez-nous	-
9	WP488627		Screw, 8-18 X 1/2 (2)   (Replaces: 300128)				$ 6.81
10	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
11	302346		Switch, Pushbutton		Appelez-nous	-
12	353425		Receptacle (wetting Agent Dispenser)		Appelez-nous	-
13	301219		Connector Block (2) (timer Motor)		Appelez-nous	-
14	94613		Terminal, (male)		Appelez-nous	-
15	WP489128		Screw (2)   (Replaces: 98209)				$ 9.79
16	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
20	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
21	301624		Trim, Console		Appelez-nous	-
22	301503		Washer (2)		Appelez-nous	-
23	301483		Screw, 8-32 (2)		Appelez-nous	-
24	300242		Barrier, Pushbutton Switch		Appelez-nous	-
26	719585		Connector, Terminal (motor)		Appelez-nous	-
28	300996		Dial, Indicator		Appelez-nous	-
30	301010		Knob		Appelez-nous	-
31	717253		Plug, Terminal (timer)		Appelez-nous	-
32	300708		Block, Connector		Appelez-nous	-
33	WP487353		Screw (3)   (Replaces: 301502)				$ 6.81
34	302338		Button (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
