SELECT A DIAGRAM

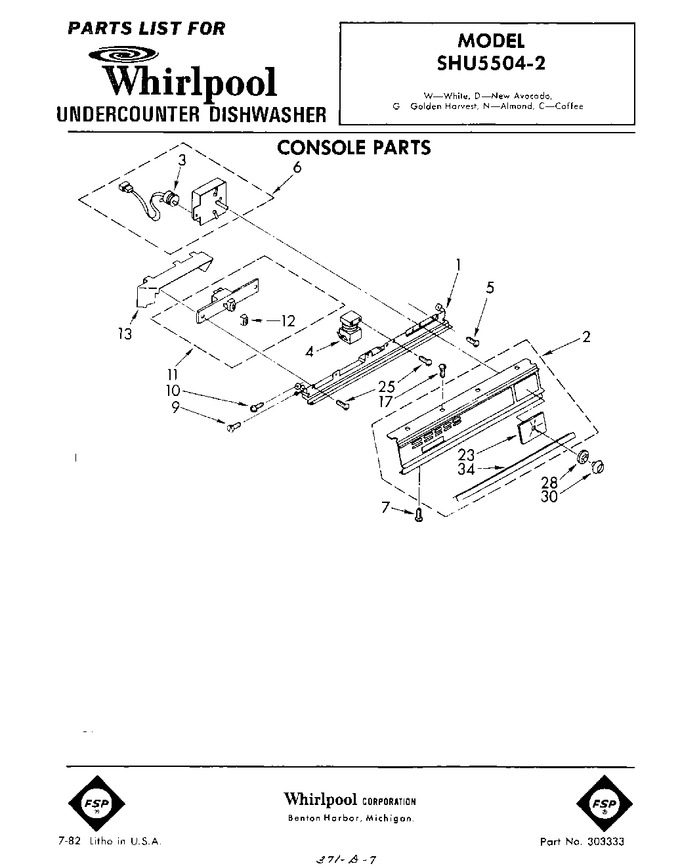

01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Pump And Motor


05 - Dishrack And Panel


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300754		Bracket, Control		Appelez-nous	-
2	303011		Console Assembly		Appelez-nous	-
3	301062		Motor, Timer		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
5	WP356418		Screw   (Replaces: 96435)				$ 7.13
6	302846		Timer, Disconnect		Appelez-nous	-
7	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
9	WP488627		Screw, 8-32 X 1/2   (Replaces: 300128)				$ 6.81
10	303090		Screw, 8-18 X 5/8 (2)		Appelez-nous	-
11	302076		Switch, Pushbutton		Appelez-nous	-
12	301977		Button (6)		Appelez-nous	-
13	303129		Barrier, Pushbutton		Appelez-nous	-
17	W10759522		Screw, 8-15 X 3/4 (4)   (Replaces: 162402)				$ 6.98
23	303003		Insert		Appelez-nous	-
25	WP489128		Screw (4)   (Replaces: 98209)				$ 9.79
28	300996		Dial, Indicator		Appelez-nous	-
30	302541		Knob, Timer		Appelez-nous	-
34	301624		Trim, Console		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
