SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Burner


04 - Body


05 - Oven Door


06 - Rotisserie , Griddle

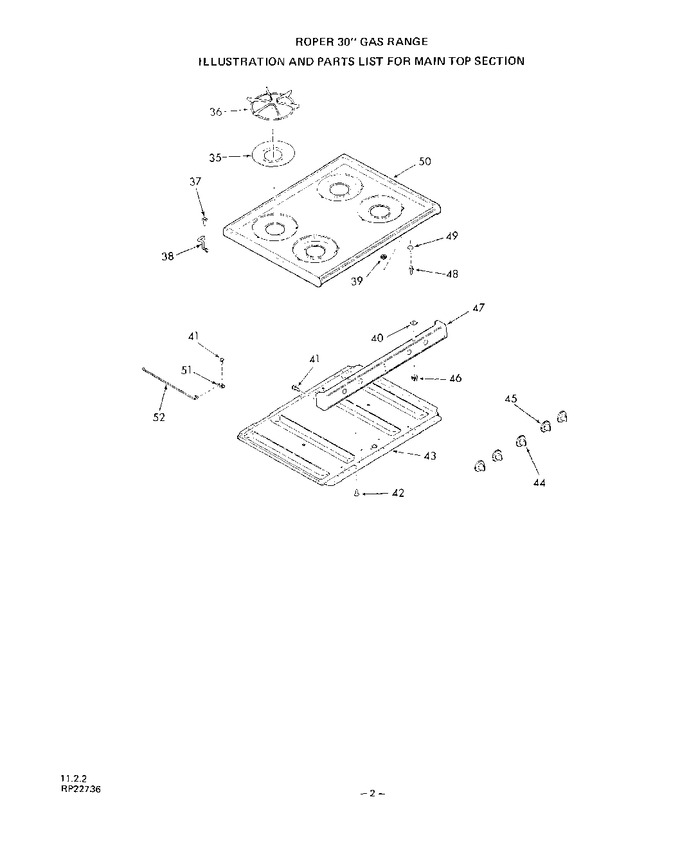

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	322888		Spill Bowl		Appelez-nous	-
36	316786		Top Grate (4 Required)		Appelez-nous	-
37	316365		Screw 10-32x7/16``		Appelez-nous	-
38	323405		Hinge (left)		Appelez-nous	-
38	323404		Hinge (right)		Appelez-nous	-
39	239764		Keps Nut 8-32		Appelez-nous	-
40	310218		Washer		Appelez-nous	-
41	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
42	239113		Screw 10-32x3/8``		Appelez-nous	-
43	308300		Burner Box Bottom		Appelez-nous	-
44	322170		Knob-oven Thermostat		Appelez-nous	-
45	322502		Knob-gas Valve (4 Required)		Appelez-nous	-
46	24667		Catch-main Top Strike (2 Required)		Appelez-nous	-
47	314667		Manifold Panel (white)		Appelez-nous	-
47	314668		Manifold Panel (coffee)		Appelez-nous	-
47	314669		Manifold Panel (avocado)		Appelez-nous	-
47	314670		Manifold Panel (golden Wheat)		Appelez-nous	-
47	314671		Manifold Panel (almond)		Appelez-nous	-
48	299784		Strike-main Top (2 Required)		Appelez-nous	-
49	99279		Washer		Appelez-nous	-
50	316813		Main Top (white)		Appelez-nous	-
50	316817		Main Top (coffee)		Appelez-nous	-
50	316816		Main Top (avocado)		Appelez-nous	-
50	316815		Main Top (golden Wheat)		Appelez-nous	-
50	316814		Main Top (almond)		Appelez-nous	-
51	285945		Clip		Appelez-nous	-
52	315379		Support-main Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
