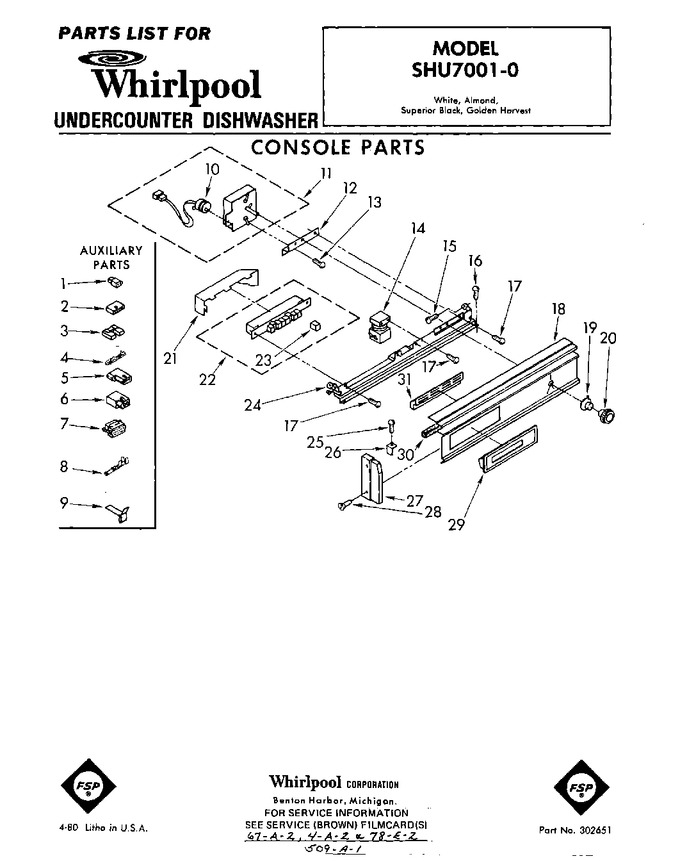

01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Pump And Motor


05 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	727253		Plug, Terminal (timer Motor)		Appelez-nous	-
2	719585		Connector, Terminal (motor)		Appelez-nous	-
3	300708		Block, Connector		Appelez-nous	-
4	352088		Terminal (disconnect Block)				$ 5.83
5	353425		Receptacle, Terminal (wetting Agent Dispenser)		Appelez-nous	-
6	717252		Receptacle, Terminal (timer Motor)		Appelez-nous	-
7	W10876590		Disconnect Block (black)   (Replaces: 352089)				$ 11.48
8	94613		Terminal, (male)		Appelez-nous	-
8	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
9	302162		Clip, Harness		Appelez-nous	-
10	301062		Motor, Timer		Appelez-nous	-
11	302567		Timer, Disconnect		Appelez-nous	-
12	301875		Bracket, Timer		Appelez-nous	-
13	WP356418		Screw   (Replaces: 96435)				$ 7.13
14	301536		Relay, Start (alternate)		Appelez-nous	-
14	301620		Relay, Start (alternate)		Appelez-nous	-
14	300516		Relay, Start (alternate)		Appelez-nous	-
15	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
16	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
17	WP489128		Screw,   (Replaces: 98209)				$ 9.79
18	302264		Panel, Escutcheon		Appelez-nous	-
19	302067		Dial, Indicator		Appelez-nous	-
20	302180		Knob, Timer		Appelez-nous	-
21	300242		Barrier, Pushbutton Switch		Appelez-nous	-
22	302068		Switch, Pushbutton		Appelez-nous	-
23	301978		Button (7)		Appelez-nous	-
24	300750		Bracket, Control		Appelez-nous	-
25	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
26	301872		Bracket, End Cap		Appelez-nous	-
27	301934		Cap, End (l.h.)		Appelez-nous	-
27	301877		End Cap, R.h.		Appelez-nous	-
28	358225		Screw, 8-18		Appelez-nous	-
29	302258		Bezel Assembly		Appelez-nous	-
30	719860		Baffle		Appelez-nous	-
31	301878		Grille, Vent		Appelez-nous	-
