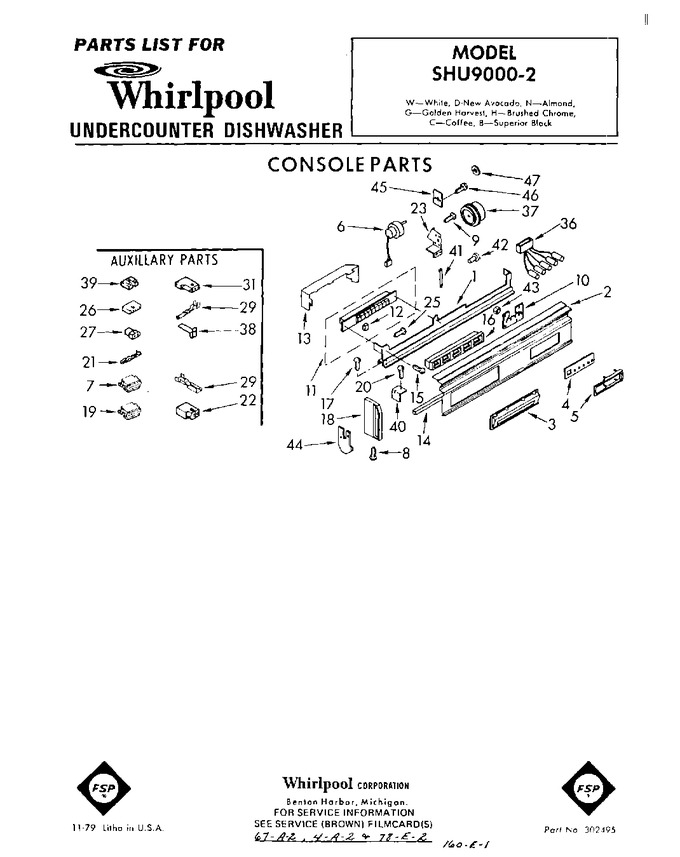

01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Pump And Motor


05 - Dishrack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302048		Bracket, Console		Appelez-nous	-
2	301932		Panel, Escutcheon		Appelez-nous	-
3	302114		Bezel Assembly, Pushbutton		Appelez-nous	-
4	301939		Lens, Light Indicator		Appelez-nous	-
5	301938		Bezel, Indicator Light		Appelez-nous	-
6	301991		Timer, Delay		Appelez-nous	-
7	352090		Block, Disconnect (white)		Appelez-nous	-
8	358225		Screw, 8-18		Appelez-nous	-
9	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
10	301941		Socket, Indicator Light		Appelez-nous	-
11	302436		Switch, Pushbutton		Appelez-nous	-
12	301978		Button (10)		Appelez-nous	-
13	300242		Barrier, Pushbutton Switch		Appelez-nous	-
14	719860		Baffle		Appelez-nous	-
15	WP489128		Screw,   (Replaces: 98209)				$ 9.79
16	301878		Grille, Vent		Appelez-nous	-
17	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
18	301877		Cap, End (r.h.)		Appelez-nous	-
18	301934		Cap, End (l.h.)		Appelez-nous	-
19	W10876590		Block, Disconnect (black)   (Replaces: 352089)				$ 11.48
20	WP488787		Screw, 8-18 X 1/2   (Replaces: 9418000)				$ 9.52
21	352088		Terminal, Female (disconnect Block)				$ 5.83
22	717252		Receptacle, Terminal (timer Motor)		Appelez-nous	-
23	301869		Bracket, Timer Mounting		Appelez-nous	-
25	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
26	719585		Connector, Terminal (motor)		Appelez-nous	-
27	727253		Plug, Terminal (timer Motor)		Appelez-nous	-
29	94613		Terminal, (male)		Appelez-nous	-
29	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
31	353425		Receptacle (wetting Agent Dispenser)		Appelez-nous	-
36	301975		Light Assembly		Appelez-nous	-
37	301970		Dial Assembly, Delay Timer		Appelez-nous	-
38	302162		Retainer, Harness		Appelez-nous	-
39	300708		Block, Connector		Appelez-nous	-
40	301872		Bracket, End Cap		Appelez-nous	-
41	302111		Hanger, Harness		Appelez-nous	-
42	297535		Bumper		Appelez-nous	-
43	98788		Nut		Appelez-nous	-
44	302157		Barrier, End Cap		Appelez-nous	-
45	302158		Barrier, Delay Timer		Appelez-nous	-
46	302252		Screw, 6-32 X 5/16		Appelez-nous	-
47	301522		Spacer, Timer		Appelez-nous	-
