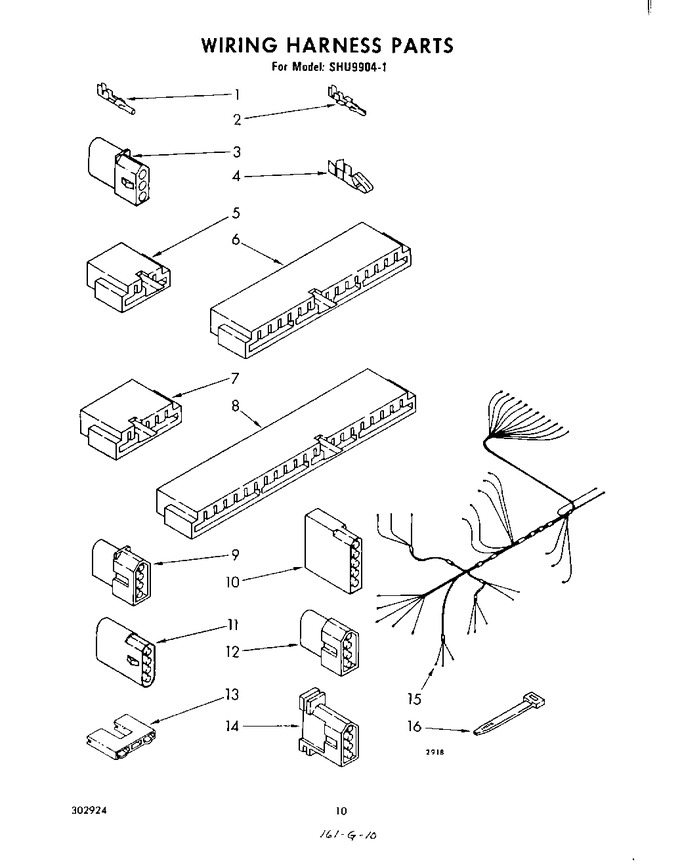

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 2 | 94613 | Terminal |
|
- | |||||
| 3 | 352424 | Plug |
|
- | |||||
| 4 | 60279 | Terminal |
|
- | |||||
| 5 | 60817 | Connector (3-circuit) |
|
- | |||||
| 6 | 60278 | Connector (15-circuit) |
|
$ 231.17 | |||||
| 7 | 60671 | Connector, 5 Circuit |
|
- | |||||
| 8 | 60683 | Connector (21-circuit) |
|
- | |||||
| 9 | 353425 | Receptacle (3-way) |
|
- | |||||
| 10 | 719585 | Receptacle (5-way) |
|
- | |||||
| 11 | 717315 | Receptacle, 4-way |
|
- | |||||
| 12 | 342529 | Plug Connector |
|
- | |||||
| 13 | 300708 | Block, Connector |
|
- | |||||
| 14 | 717316 | Plug, Terminal |
|
- | |||||
| 15 | 303062 | Harness, Wiring |
|
- | |||||
| 16 | WPW10339879 | Wire, Tie (yellow, 6``) (Replaces: 302472) |
|
$ 7.11 | |||||
| 16 | 302473 | Wire, Tie (red, 4``) |
|
- |
