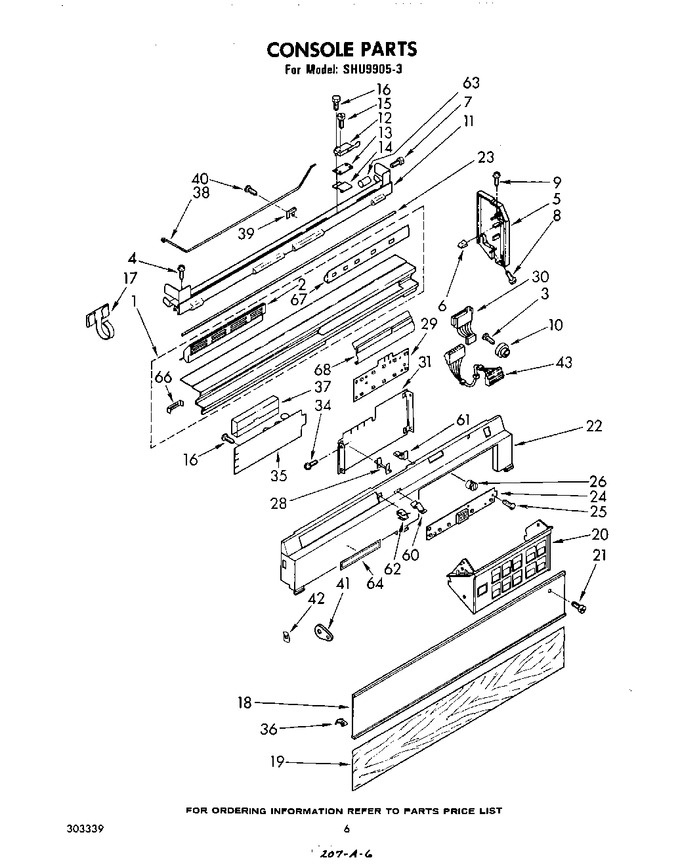

04 - Console


05 - Pump And Motor


06 - Dishrack


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302556		Bezel Assembly		Appelez-nous	-
2	301878		Grille, Vent		Appelez-nous	-
3	W11693756		Screw, 8-18 X 5/8   (Replaces: 9414713)			Immediately	$ 12.65
4	WP489128		Screw (1)   (Replaces: 98209)				$ 9.79
5	302169		End Cap, R.h.		Appelez-nous	-
5	302170		End Cap, L.h.		Appelez-nous	-
6	302267		Clip, ``u`` Type (2)		Appelez-nous	-
7	WP488787		Screw, 8-18 X 1/2 (2)   (Replaces: 9418000)				$ 9.52
8	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
9	301087		Screw, 12 X 7/8 (2)		Appelez-nous	-
10	302186		Bumper, Rubber		Appelez-nous	-
11	302587		Handrail, Hinge Assembly		Appelez-nous	-
12	302202		Switch, Micro		Appelez-nous	-
13	302466		Insulator, Terminal		Appelez-nous	-
14	302201		Bracket, Switch Mounting		Appelez-nous	-
15	302203		Screw, 4-40 X 9/16		Appelez-nous	-
16	WP488234		Screw, 8-32 X 1/4 (4)   (Replaces: 9412221)				$ 6.07
17	302426		Clip, Cable		Appelez-nous	-
18	302550		Door, Tiltout		Appelez-nous	-
19	302551		Insert, Woodgrain		Appelez-nous	-
20	302976		Touch Module		Appelez-nous	-
21	302191		Screw, 8 X 5/8 (hil) (4)		Appelez-nous	-
22	302558		Control Panel Assembly		Appelez-nous	-
23	302205		Rod, Hinge		Appelez-nous	-
24	302231		Display L.e.d.		Appelez-nous	-
25	98617		Screw, 8-32 X 3/4 (3)		Appelez-nous	-
26	302222		Spacer (3)		Appelez-nous	-
28	302220		Standoff (4)		Appelez-nous	-
29	302230		Indicator, L.e.d.		Appelez-nous	-
30	302418		Harness, Ind/main		Appelez-nous	-
31	302977		Microcomputer Assembly		Appelez-nous	-
34	302206		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
35	302232		Control, Power Supply		Appelez-nous	-
36	302547		Clip, Panel Retainer (2)		Appelez-nous	-
37	302423		Barrier, Power Supply		Appelez-nous	-
38	302207		Spring, Door		Appelez-nous	-
39	302235		Retainer, Spring (2)		Appelez-nous	-
40	WP489128		Screw (2)   (Replaces: 98209)				$ 9.79
41	302378		Arm, Linkage		Appelez-nous	-
42	302377		Pushnut		Appelez-nous	-
43	302984		Harness, Display/main		Appelez-nous	-
60	302557		Clip, Mounting		Appelez-nous	-
61	302748		Hanger, Cable		Appelez-nous	-
62	302749		Retainer, Cable		Appelez-nous	-
63	675679		Protector, Screw   (Replaces: 346308)			Immediately	$ 31.70
64	302427		Label, Solid State		Appelez-nous	-
66	302994		Clip (3)		Appelez-nous	-
67	302171		Lens, Indicator		Appelez-nous	-
68	303102		Barrier, Water		Appelez-nous	-
