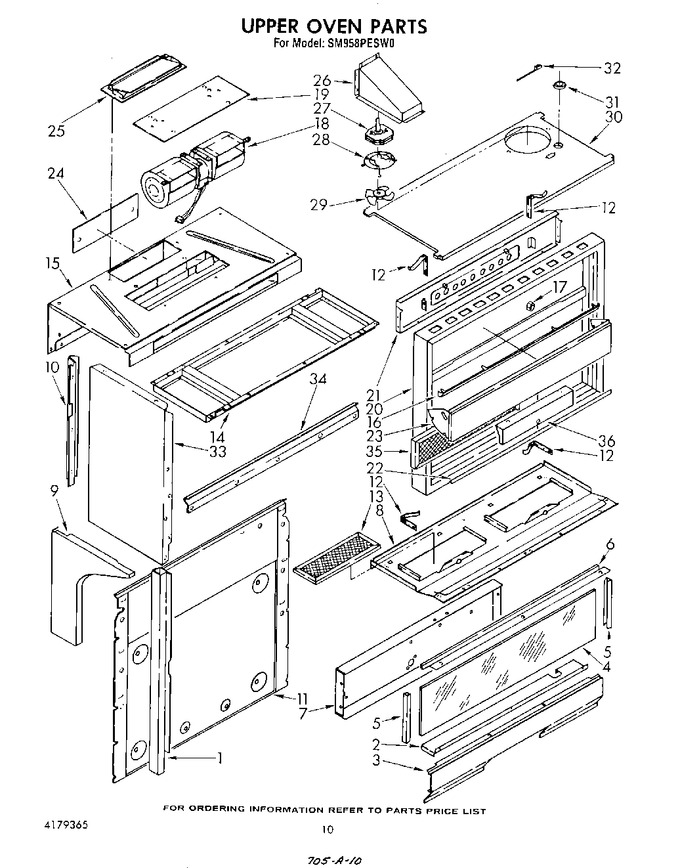

07 - Upper Oven


08 - Control Panel


09 - Cabinet And Hinge


10 - Magnetron And Air Flow


11 - Cabinet And Stirrer


12 - Door And Latch


13 - Wiring Harness , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4179241		Support, Upper Oven (l.h.)		Appelez-nous	-
1	4179240		Support, Upper Oven (r.h.)		Appelez-nous	-
2	786499		Shield, Heat		Appelez-nous	-
3	4179349		Trim, Lower		Appelez-nous	-
4	4179360		Glass, Splashplate		Appelez-nous	-
5	786489		Trim, Glass		Appelez-nous	-
6	4179243		Trim, Rear		Appelez-nous	-
7	786460		Panel, Surface Light		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
8	3147593		Seal, Foam		Appelez-nous	-
8	312783		Bumper (4)		Appelez-nous	-
8	4179239		Panel, Bottom		Appelez-nous	-
9	3147655		Support, Side (l.h.) (almond)		Appelez-nous	-
9	3147649		Support, Side (l.h.) (white)		Appelez-nous	-
9	3147650		Support, Side (l.h.) (almond)		Appelez-nous	-
9	3147654		Support, Side (l.h.) (white)		Appelez-nous	-
10	4179242		Spacer, Wall		Appelez-nous	-
11	4179341		Panel, Cover		Appelez-nous	-
12	3147525		Clip (4)		Appelez-nous	-
13	3147606		Filter, Mesh (2)		Appelez-nous	-
14	3170224		Support, Frame		Appelez-nous	-
15	WP488729		Screw, 8-18 X 1/2 (6)   (Replaces: 313638)			Immediately	$ 7.01
15	3170318		Top Panel		Appelez-nous	-
16	314032		Deflector, Air		Appelez-nous	-
17	3147378		Nut (3)		Appelez-nous	-
18	3147817		Motor, Fan		Appelez-nous	-
19	3147866		Nut, Hex		Appelez-nous	-
19	3147798		Cover, Access		Appelez-nous	-
19	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
20	3170131		Frame		Appelez-nous	-
20	311945		Screw, 8-32 X 1/2 (4)		Appelez-nous	-
21	3147712		Panel, Vent Door		Appelez-nous	-
21	3147724		Screw, Shoulder (2)		Appelez-nous	-
21	3148294		Rivet, Plastic (2)		Appelez-nous	-
21	3147595		Seal, Foam (2)		Appelez-nous	-
21	3147596		Seal, Foam		Appelez-nous	-
21	3147751		Seal, Foam (4)		Appelez-nous	-
21	3147764		Spring, Vent Door (2)		Appelez-nous	-
21	3147858		Rivet (2)		Appelez-nous	-
22	WP313808		Screw, 6-32 X 9/32 (3)   (Replaces: 313808)				$ 6.84
22	3147710		Handle, Vent Door		Appelez-nous	-
23	3170269		Door, Vent		Appelez-nous	-
24	3147726		Cover, Exhaust		Appelez-nous	-
25	3147843		Damper		Appelez-nous	-
26	3148009		Flue, Air		Appelez-nous	-
26	WP488729		Screw, 8-18 X 1/2 (3)   (Replaces: 313638)			Immediately	$ 7.01
27	307602		Nut, Hex 6-32 (2)		Appelez-nous	-
27	312389		Motor, Fan		Appelez-nous	-
28	310420		Mount, Fan Motor		Appelez-nous	-
28	WP488729		Screw, 8-18 X 1/2 (3)   (Replaces: 313638)			Immediately	$ 7.01
29	307535		Blade, Fan		Appelez-nous	-
30	3147590		Seal, Foam		Appelez-nous	-
30	3148007		Separator, Air		Appelez-nous	-
31	3148008		Bushing, Snap		Appelez-nous	-
32	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 7.11
33	3147592		Side Panel, L.h. (seal, Foam (2) Side Panel, R.h.)		Appelez-nous	-
33	WP681414		Side Panel, L.h. (screw, 10-16 X 1/2 (6))   (Replaces: 343641)			Immediately	$ 7.07
33	3147143		Side Panel L.h. (white)		Appelez-nous	-
33	3147145		Side Panel L.h. (almond)		Appelez-nous	-
33	3147147		Side Panel L.h. (toast)		Appelez-nous	-
33	3147149		Side Panel L.h. (platinum)		Appelez-nous	-
33	WP488627		Side Panel, L.h. (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 6.81
33	3147591		Side Pane, L.h. (seal, Foam (2))		Appelez-nous	-
33	3147142		Side Panel, L.h. (white)		Appelez-nous	-
33	3147144		Side Panel, L.h. (almond)		Appelez-nous	-
33	3147146		Side Panel, L.h. (toast)		Appelez-nous	-
33	3147148		Side Panel, L.h. (platinum)		Appelez-nous	-
34	4179343		Spacer, Wall (horizontal)		Appelez-nous	-
35	3147525		Clip (2)		Appelez-nous	-
35	3147607		Filter, Aluminum		Appelez-nous	-
36	4179342		Deflector, Flue		Appelez-nous	-
