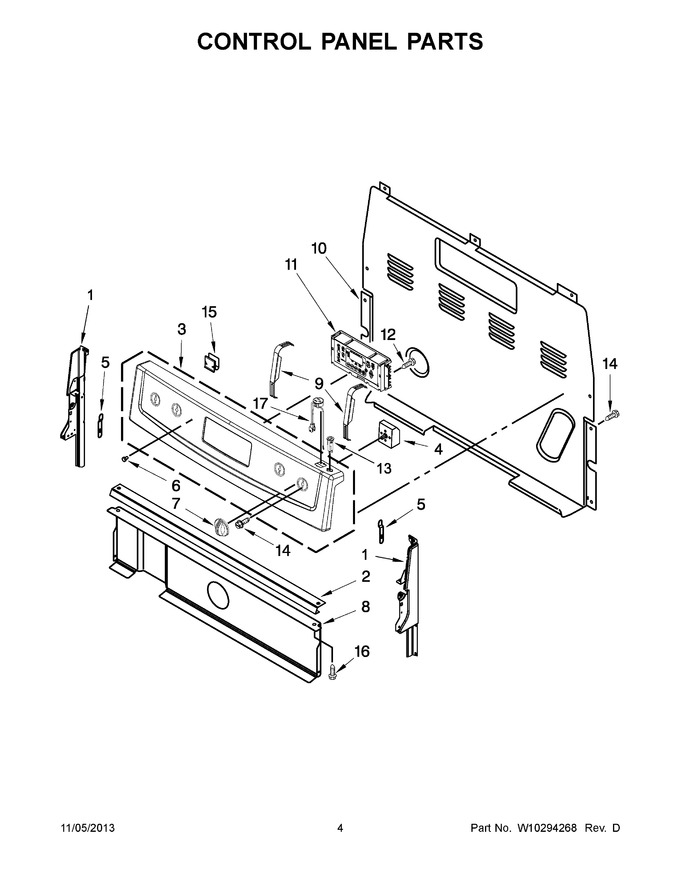

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 36.39 | |||||
| 1 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 1 | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 52.14 | |||||
| 1 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 3 | W10292017 | Panel, Control (white) |
|
$ 116.45 | |||||
| 3 | W10292019 | Panel, Control (stainless Steel) |
|
$ 143.71 | |||||
| 4 | WP3148952 | Switch, Infinite (yellow) (right Front & Left Rear) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 4 | WP3149400 | Switch, Infinite (left Front & Right Rear) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 8.96 | |||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W11193834 | Knob, Infinite (black) (Replaces: W10211372) |
|
$ 76.27 | |||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 18.20 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 72.69 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | WPW10476675 | Control, Range (white (lcc 95)) (Replaces: W10476675) |
|
$ 450.24 | |||||
| 11 | W10271763 | Control, Range (black (lcc 95)) |
|
$ 182.97 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 13 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 13 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 14 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 15 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 10.85 | |||||
| 16 | 3196166 | Screw (white) |
|
$ 6.31 | |||||
| 17 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 17 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 72.71 |
