01 - Control Panel
02 - Door (lower)
03 - Door (upper)
04 - Gas Controls

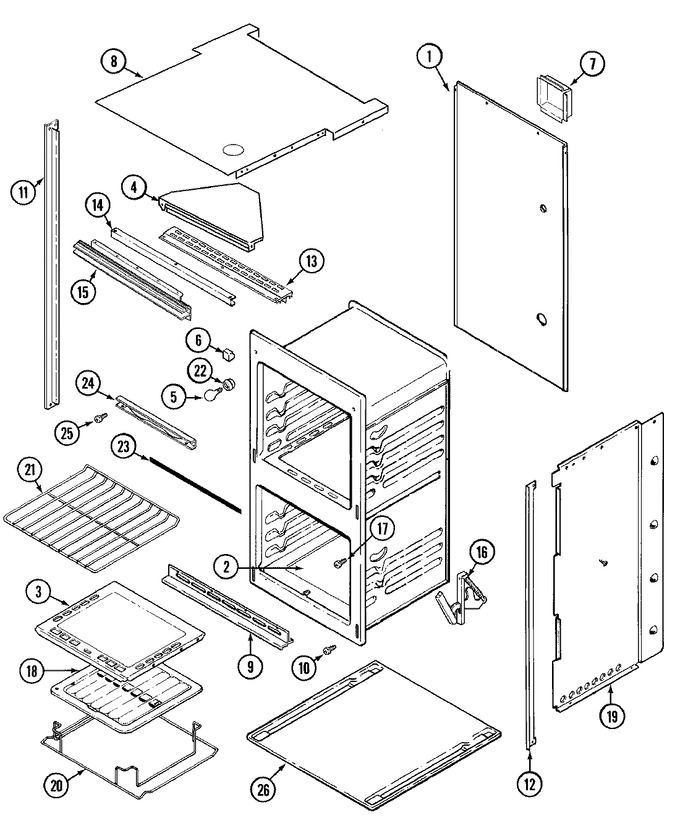

05 - Oven/body
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001850 | Insulation, Wrapper | 01 |
|
- | ||||
| 1 | 4002F041-51 | Back, Main | 01 |
|
- | ||||
| 2 | 2205F005-16 | Bottom, Oven | 01 |
|
- | ||||
| 3 | 2205F008-16 | Bottom, Oven | 01 |
|
- | ||||
| 4 | 4006W008-53 | Flue Box Assy | 01 |
|
- | ||||
| 5 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 6 | 8003P002-60 | Bumper Door (round) | 01 |
|
- | ||||
| 7 | 4005F088-80 | Cover | 01 |
|
- | ||||
| 8 | W10204425 | Cover Box Wall Oven (Replaces: 4005F152-51) | 01 |
|
- | ||||
| 8 | 7401P037-60 | Block, Terminal | 01 |
|
- | ||||
| 9 | 7706P153-60 | Extrusion, Bottom (blk) | 01 |
|
- | ||||
| 10 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 01 |
|
$ 15.94 | ||||
| 11 | 7750P029-60 | Extension, Side (left) | 01 |
|
- | ||||
| 12 | 7750P030-60 | Extension, Side (right) | 01 |
|
- | ||||
| 13 | 7706P199-60 | Extrusion, Top (blk) | 01 |
|
- | ||||
| 14 | 7756P009-60 | Extrusion, Top Front (blk) | 01 |
|
- | ||||
| 15 | 7756P072-60 | Extrusion Vent | 01 |
|
- | ||||
| 16 | 7106P028-60 | Hinge, Door | 01 |
|
- | ||||
| 16 | 74001984 | Hinge, Door | 14 |
|
$ 126.36 | ||||
| 16 | 74001856 | Hinge, Door (Replaces: 74001882) | 14 |
|
$ 123.16 | ||||
| 16 | 7106P026-60 | Hinge, Door | 01 |
|
- | ||||
| 17 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 18 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 18 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 19 | 74001883 | Insulation, Wrapper | 10 |
|
- | ||||
| 19 | 2618F089-51 | Panel, Side Right | 01 |
|
- | ||||
| 19 | 2618F088-51 | Panel, Side Lf. | 01 |
|
- | ||||
| 20 | 790402 | Rack, Broil Bright Chrome | 01 |
|
- | ||||
| 21 | 7801P034-60 | Oven Rack | 01 |
|
- | ||||
| 21 | 7801P005-60 | Rack | 01 |
|
- | ||||
| 22 | 7408P001-60 | Recept, Oven Light | 01 |
|
- | ||||
| 23 | 7212P014-60 | Seal, Door (top) | 01 |
|
$ 48.10 | ||||
| 24 | 5720A002-15 | Support Assy, Oven Bottom | 01 |
|
- | ||||
| 25 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 26 | 4003F013-80 | Base, Wall Oven | 01 |
|
- | ||||
| 27 | 7402P014-60 | Cord, Power | 01 |
|
- |
