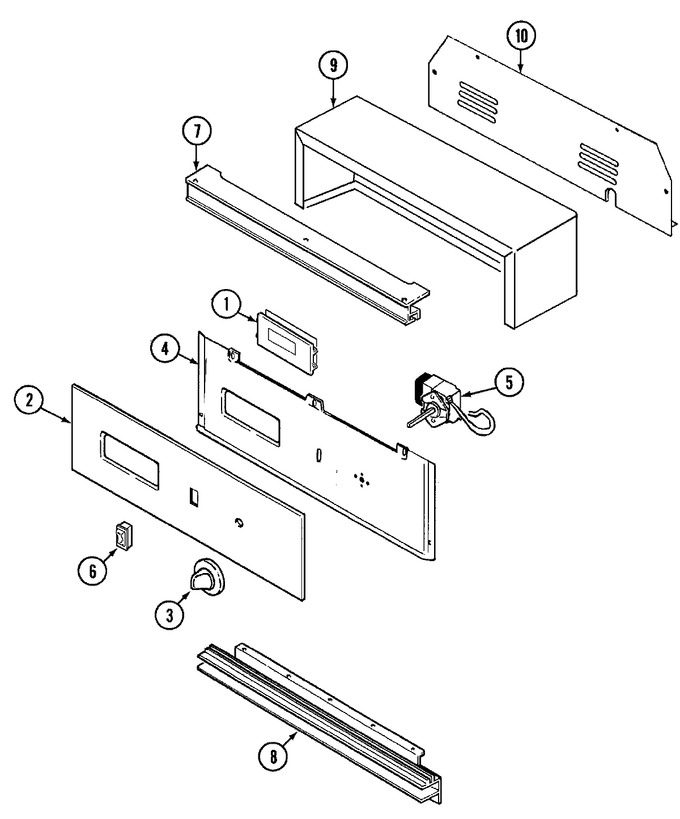

01 - Control Panel
02 - Door (upper & Lower)
03 - Gas Controls
04 - Oven/body
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P118-60 | Clock (blk) | 10 |
|
- | ||||
| 1 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 2 | 7101P311-60 | Screw----na | 10 |
|
- | ||||
| 2 | 74001910 | Panel, Control (blk) | 10 |
|
- | ||||
| 3 | 74001254 | Knob, Thermostat (chr) | 10 |
|
$ 12.47 | ||||
| 4 | 74001837 | Plate, Support | 10 |
|
- | ||||
| 5 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 5 | 7404P098-60 | Thermostat | 10 |
|
$ 172.62 | ||||
| 6 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 10 |
|
$ 91.35 | ||||
| 7 | 74001854 | Extrusion, Top Front (blk) | 10 |
|
- | ||||
| 7 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 8 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 8 | 7756P072-60 | Extrusion Vent | 10 |
|
- | ||||
| 9 | 4005F153-51 | Cover, Wire | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 74001913 | Cover, Rear Wire | 10 |
|
- | ||||
| 11 | 74001987 | Harness, Wire (cntrl Pnl) | 10 |
|
- | ||||
| 12 | 74002013 | Manual, Use & Care | 10 |
|
- | ||||
| 12 | 74001912 | Manual, Use & Care | 10 |
|
- | ||||
| 13 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
