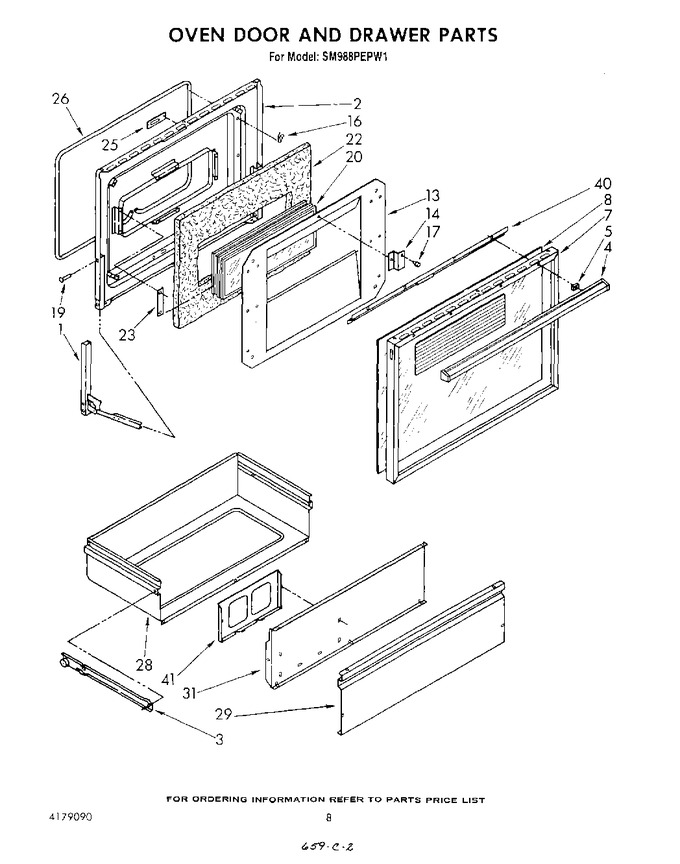

06 - Oven Door Drawer, Literature And Optional


07 - Upper Oven


08 - Control Panel


09 - Cabinet And Stirrer


10 - Magnetron And Air Flow


11 - Door And Latch


12 - Wiring Harness


13 - Cabinet And Hinge


14 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786374		Hinge, Oven Door (right Side)		Appelez-nous	-
1	786375		Hinge, Oven Door (left Side)		Appelez-nous	-
2	WP308685		Screw (4)   (Replaces: 786757)			Immediately	$ 7.08
2	786755		Screw, 8-32 X 5/8 (4)		Appelez-nous	-
2	WP965173		Screw, 8 X 3/8 (11)   (Replaces: 786745)			Immediately	$ 9.65
2	WP488130		Nut (4)   (Replaces: 786272)				$ 6.27
2	786406		Liner, Oven Door		Appelez-nous	-
2	WP965173		Screw, 8a X 3/8 (6)   (Replaces: 786756)			Immediately	$ 9.65
3	786814		Runner (r.h.)		Appelez-nous	-
3	786813		Runner (l.h.)		Appelez-nous	-
4	786408		Handle		Appelez-nous	-
5	786410		Spacer, Handle (2)		Appelez-nous	-
7	786417		Frame		Appelez-nous	-
8	786419		Panel, Black Glass		Appelez-nous	-
13	786424		Retainer, Insulation		Appelez-nous	-
14	786425		Bracket, Glass Support (4)		Appelez-nous	-
16	786426		Clip, Speed (14)		Appelez-nous	-
17	786427		Bumper Window (5)		Appelez-nous	-
19	786428		Pin, Hinge (2)		Appelez-nous	-
20	786429		Window Assembly		Appelez-nous	-
22	WPW10208653		Insulation, Door   (Replaces: 786447)			Immediately	$ 49.92
23	786430		Retainer, Window (4)		Appelez-nous	-
25	786671		Plate, Latch (2)		Appelez-nous	-
26	786432		Gasket Assembly		Appelez-nous	-
28	786808		Wrapper, Storage Drawer		Appelez-nous	-
29	786667		Panel, Drawer (toast)		Appelez-nous	-
29	786522		Panel, Drawer (white)		Appelez-nous	-
29	786521		Panel, Drawer (almond)				$ 45.18
29	786666		Panel, Drawer (platinum)		Appelez-nous	-
31	786668		Liner, Door Panel		Appelez-nous	-
40	786422		Baffle, Air		Appelez-nous	-
41	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
41	786807		Rack, Literature		Appelez-nous	-
41	WP261869		Citrine White (1/2 Oz.)   (Replaces: 261869)				$ 23.85
41	261900		0 (citrine White (6 Oz.))				$ 51.34
41	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
41	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
41	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
41	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
41	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
41	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
41	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
41	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
41	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
41	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
41	242831		Wire (14 Ga. 200 C Red)				$ 342.23
41	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
41	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
41	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	LIT4179090		List, Repair Parts		Appelez-nous	-
	LIT312880		Guide, Use & Care (microwave)		Appelez-nous	-
	LIT786299		Guide, Use & Care (range)		Appelez-nous	-
	LIT786301		Instructions, Installation		Appelez-nous	-
	LIT311895		Cookbook		Appelez-nous	-
	LIT786302		Guide, Cooking		Appelez-nous	-
