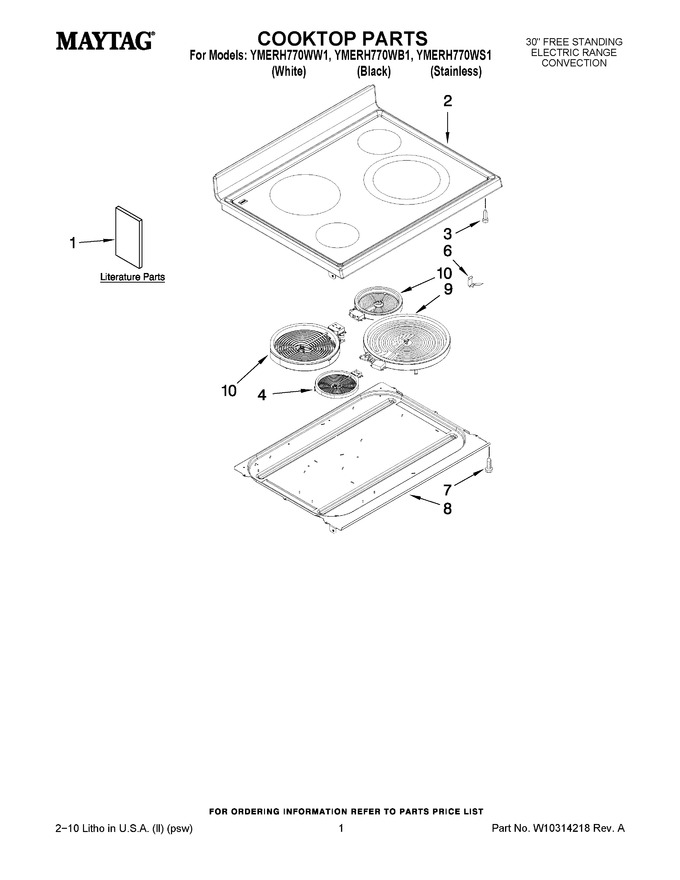

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239460 | Use & Care Guide |
|
- | |||||
| 1 | W10239466 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10239467 | Wiring Diagram (french) |
|
- | |||||
| 1 | W10245713 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Brochure, Safe Tip (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Safe Tip (french) |
|
- | |||||
| 2 | W10225474 | Cooktop (black) |
|
- | |||||
| 2 | W10225473 | Cooktop (white) |
|
- | |||||
| 3 | 74008761 | Spacer Snap-in (4) (Replaces: 8010P149-60) |
|
$ 7.55 | |||||
| 4 | WPW10251108 | Element, (lf) (Replaces: W10251108) |
|
Immediately | $ 201.29 | ||||
| 6 | 74007134 | Spring, Element (Replaces: 7803P087-60) |
|
$ 10.51 | |||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 8 | W10170717 | Bottom, Burner Box |
|
- | |||||
| 9 | W10823727 | Element (rf) (Replaces: W10162040) |
|
Immediately | $ 293.68 | ||||
| 10 | W11171119 | Element (lr & Rr) (Replaces: 8273994) |
|
Immediately | $ 164.01 |
