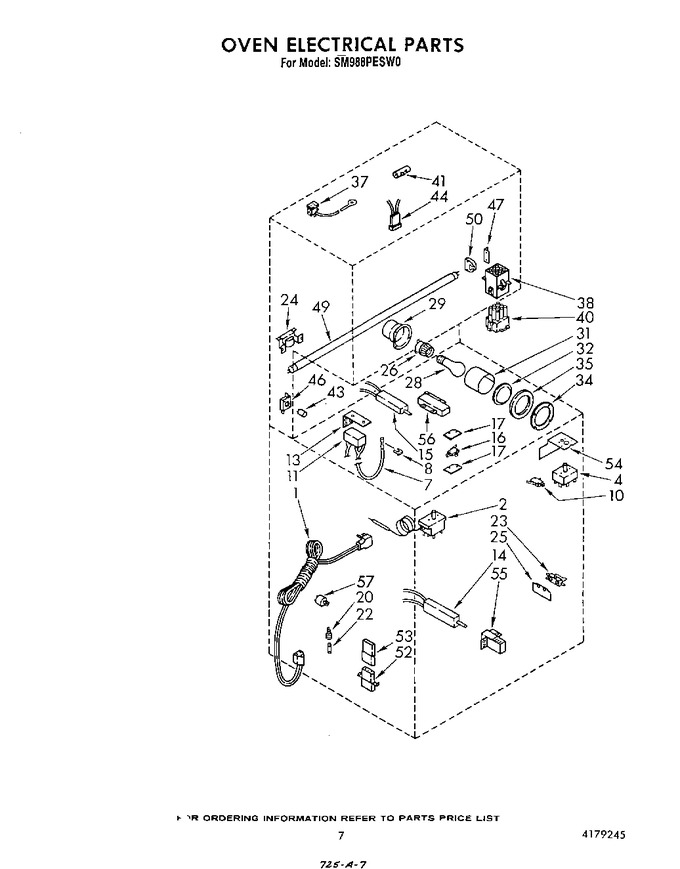

05 - Oven Electrical


06 - Oven Door And Drawer


07 - Upper Oven


08 - Control


09 - Cabinet And Hinge


10 - Magnetron And Air Flow


11 - Cabinet And Stirrer


12 - Door And Latch


13 - Wiring Harness , Literature And Optional


14 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786803		Cord, Power		Appelez-nous	-
2	4179069		Thermostat, Oven		Appelez-nous	-
4	4179076		Switch, Selector		Appelez-nous	-
7	786320		Ignitor, Top (r.h.)		Appelez-nous	-
7	786321		Ignitor, Top (l.h.)		Appelez-nous	-
8	WPY0070927		Mounting Clip, Electrode   (Replaces: 786580)				$ 6.85
10	786322		Switch, Top Burner Actuator		Appelez-nous	-
11	786323		Module, Spark		Appelez-nous	-
13	786581		Bracket, Spark Module		Appelez-nous	-
14	786324		Ignitor, Bake   (Replaces: 786659)			Immediately	$ 60.68
15	786324		Ignitor, Broil   (Replaces: 786660)			Immediately	$ 60.68
16	786669		Switch, Oven Door Latch		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
20	786584		Holder, Fuse		Appelez-nous	-
22	786585		Fuse		Appelez-nous	-
23	786587		Switch, Aux. Light		Appelez-nous	-
24	786540		Ballast		Appelez-nous	-
25	786588		Insulation, Door Switch (2)		Appelez-nous	-
26	786653		Socket, Oven Lamp		Appelez-nous	-
28	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
29	786743		Housing, Oven Light		Appelez-nous	-
31	786573		Retainer, Insulation		Appelez-nous	-
32	786574		Lens, Oven Light		Appelez-nous	-
34	786575		Retainer, Oven Light Lens		Appelez-nous	-
35	786576		Gasket, Oven Light		Appelez-nous	-
37	786651		Outlet, Fan Motor		Appelez-nous	-
38	786652		Cap, 9 Pin Connector		Appelez-nous	-
40	786593		Plug, 9 Pin Connector		Appelez-nous	-
41	786654		Receptacle, 1 Circuit		Appelez-nous	-
43	786541		Starter, Fluorescent		Appelez-nous	-
44	786655		Plug, 2 Circuit		Appelez-nous	-
46	786542		Socket, Starter		Appelez-nous	-
47	786592		Support Bracket, Socket		Appelez-nous	-
49	WP95292		Lamp, Fluorescent   (Replaces: 786594)			Immediately	$ 121.45
50	786536		Lampholder Fluorescent		Appelez-nous	-
52	786661		Receptacle, 3 Pin		Appelez-nous	-
53	786662		Plug, 3-pin		Appelez-nous	-
54	786689		Insulator, Control (2)		Appelez-nous	-
55	786801		Bracket, Bake Ignitor		Appelez-nous	-
56	786802		Bracket, Broiler Ignitor		Appelez-nous	-
57	4179177		Plug, Male		Appelez-nous	-
