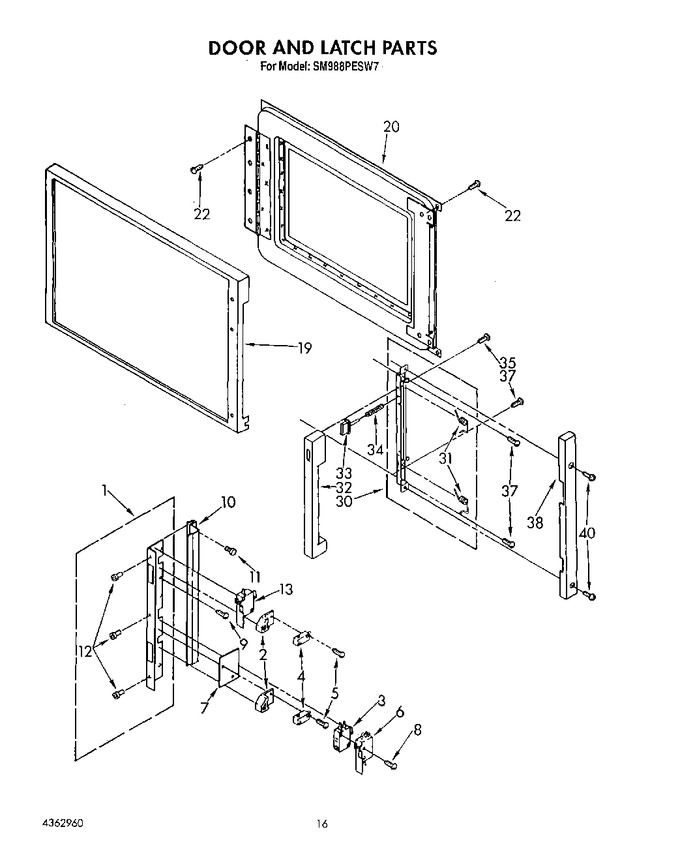

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312713		Screw, 8-32 X 3/8		Appelez-nous	-
1	311354		Bracket, Catch		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	661144		Switch		Appelez-nous	-
4	814037		Switch, Primary & Secondary Interlock (2)   (Replaces: 661146)				$ 81.32
5	312717		Screw, 4-40 X 3/4 Pan Head Thread Form (4)		Appelez-nous	-
6	661145		Switch, Light/ Monitor		Appelez-nous	-
7	313126		Insulator		Appelez-nous	-
8	310211		Screw, 4-40 X 10 (2)		Appelez-nous	-
9	309080		Screw, 8-32 X 3/8 Slot Hex Washer Head Self-tapping (ground)		Appelez-nous	-
10	311360		Shield		Appelez-nous	-
11	313740		Fastener (2)		Appelez-nous	-
12	311928		Rivet, Pop (3)				$ 5.33
13	313120		Switch, Miniture		Appelez-nous	-
19	3170441		Frame, Door		Appelez-nous	-
20	3171012		Door, Inner		Appelez-nous	-
22	WPW10068250		Screw, 8-32 X 19/32 Torx Truss Head (6)   (Replaces: 311777)				$ 3.66
30	329066		Latch Assembly		Appelez-nous	-
31	311352		Spring, Torsion (2)		Appelez-nous	-
31	303776		Screw 8-32 X 5/16   (Replaces: 313811)		Appelez-nous	-
32	314169		Handle, Door		Appelez-nous	-
33	313611		Button, Door Handle   (Replaces: 314168)				$ 35.65
34	310197		Spring, Compression		Appelez-nous	-
35	313820		Screw (2)		Appelez-nous	-
37	WP489128		Screw, 8-32 X 7/16   (Replaces: 311722)				$ 9.79
38	3148297		End Cap		Appelez-nous	-
40	313823		Screw, 8-22 (5)		Appelez-nous	-
