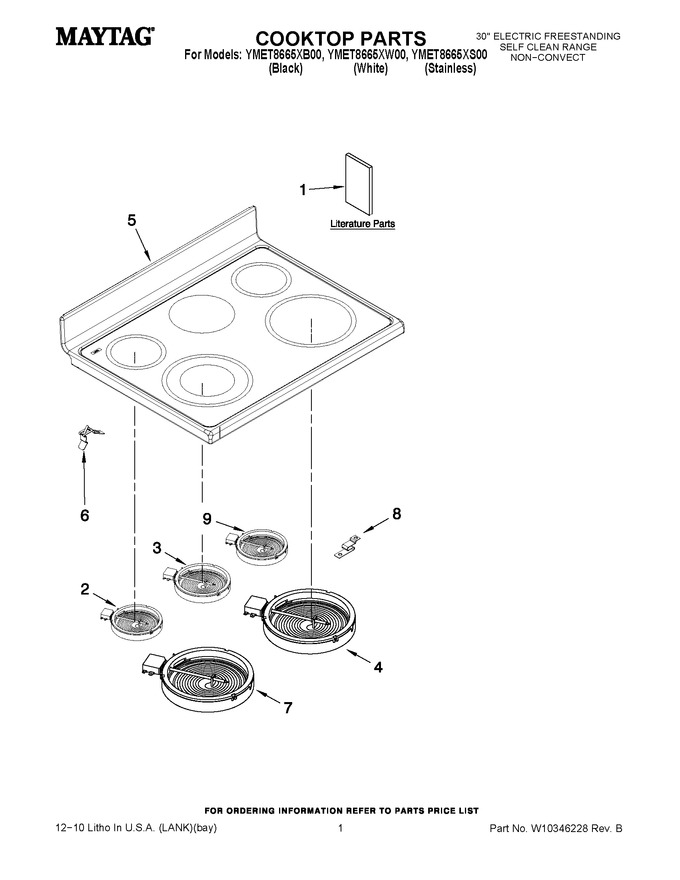

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts
06 - Rack And Element Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10289536 | Installation Instructions |
|
- | |||||
| 1 | W10289539 | Owners Manual |
|
- | |||||
| 1 | W10311750 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Tips, Brochure Safe Cooking |
|
- | |||||
| 2 | W11171119 | 1200w, Lr (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 3 | WP9762851 | Element, Warm Zone (120v) (Replaces: 9762851) |
|
Immediately | $ 248.88 | ||||
| 4 | WPW10251107 | 3200w, Rf (Replaces: W10251107) |
|
$ 306.51 | |||||
| 5 | W10336332 | Cooktop (black) (Replaces: W10299101) |
|
$ 572.46 | |||||
| 5 | W10299103 | Cooktop (white) |
|
- | |||||
| 6 | WPW10225448 | Spring-element, Push-in (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 7 | W11517959 | 3000/1400w, Lf (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 8 | WPW10260946 | Support, Element (Replaces: W10260946) |
|
$ 115.80 | |||||
| 9 | WPW10270604 | 700w, Rr (Replaces: W10270604) |
|
Immediately | $ 191.56 |
