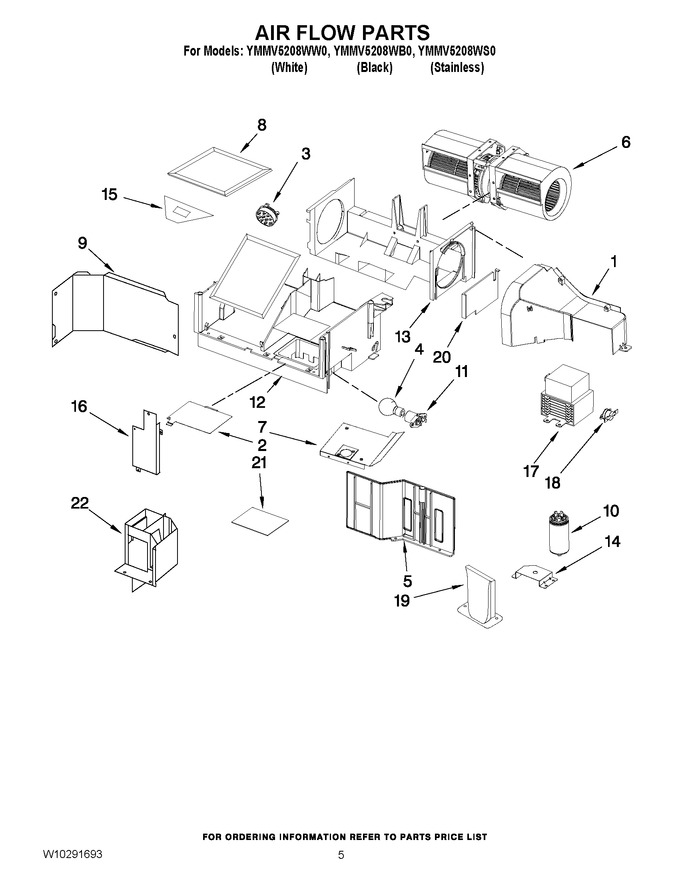

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10286814		Deflector, Air		Appelez-nous	-
2	8206382		Cover, Lamp				$ 7.87
3	W10245178		Sensor, Humidity				$ 151.72
4	8206232A		Lamp   (Replaces: 4393681)			Immediately	$ 6.61
5	W10245192		Cover, Side Inlet		Appelez-nous	-
6	W10245205		Motor, Fan Assy		Appelez-nous	-
7	W10245179		Support, Sensor				$ 77.72
8	8206230A		Filter, Charcoal   (Replaces: 8206230)			Immediately	$ 17.33
9	W10245210		Air Guide,plate		Appelez-nous	-
10	8206624		Filter				$ 38.80
11	WPW10210878		Holder, Lamp   (Replaces: W10210878)			Immediately	$ 29.89
12	W10245211		Base Plate, Air Guide				$ 11.10
13	W10640885		Holder   (Replaces: W10245206)				$ 66.92
14	W10156815		Brkt-mntg,filter				$ 54.90
15	W10139750		Socket, Motor Wire		Appelez-nous	-
16	W10245214		Cover, Inlet Air Cavity Guide				$ 34.36
17	W10222507		Magnetron				$ 344.20
18	W10598693		Thermostat   (Replaces: 8206342)				$ 55.94
19	W10164716		Plate, Water Proof				$ 30.03
20	W10245182		Cover, Right Duct		Appelez-nous	-
21	W10245212		Cavity Lamp Foil		Appelez-nous	-
22	W10245215		Sealing Plate		Appelez-nous	-
