SELECT A DIAGRAM

01 - Cabinet


02 - Cavity

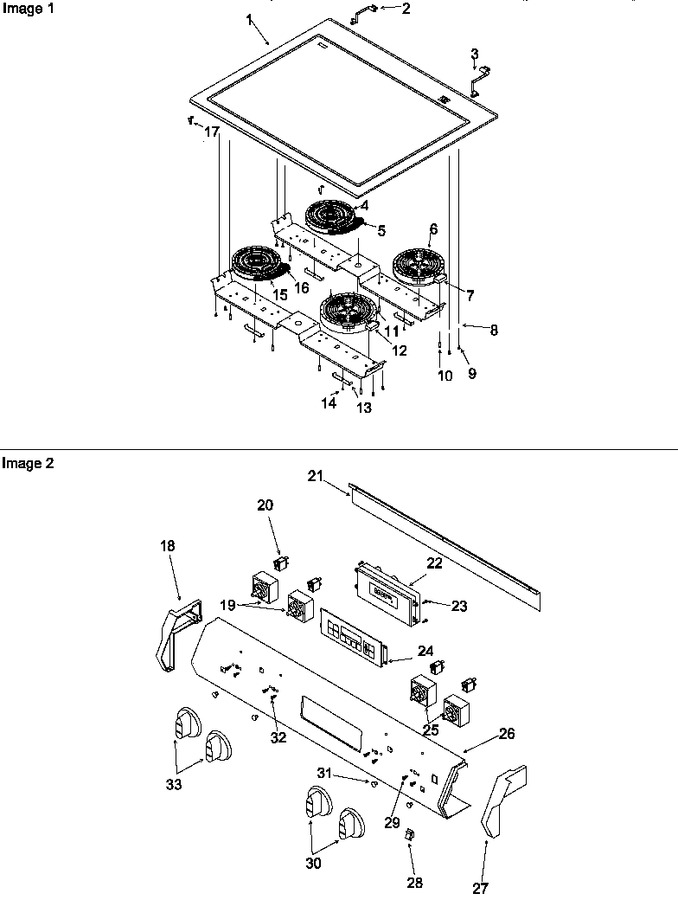

03 - Main Top & Control Panel


04 - Miscellaneous Information


05 - Oven Door & Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316318B		Assy, Maintop/glass		Appelez-nous	-
2	Y0316176		Hinge, Main Top L.h.		Appelez-nous	-
3	Y0316047		Hinge, Main Top R.h.		Appelez-nous	-
4	Y0307433		Element, Haloring-1800 W		Appelez-nous	-
5	10061003		Limiter, Temp, Large		Appelez-nous	-
6	Y0314909		Element, Ribbon (1200 Watts)		Appelez-nous	-
7	0316686		Limiter (1200 Watts)		Appelez-nous	-
8	Y0316165		Bracket, Element		Appelez-nous	-
9	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
10	Y0316569		Screw, Shoulder		Appelez-nous	-
11	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0314899)				$ 308.80
12	Y00000000		See Note See Note Limiter-dual Element Rf, Not Field Replaceable		Appelez-nous	-
13	Y0306683		Spring, Element		Appelez-nous	-
14	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
15	Y0307432		Element, Haloring-1500 W		Appelez-nous	-
16	10061005		Element, Haloring-1500 W		Appelez-nous	-
17	Y0317100		Clip, Main Top Retainer		Appelez-nous	-
18	316058B		Kit,end Cap/hinge-blk		Appelez-nous	-
19	Y0315854		Switch, 10-pos Surface		Appelez-nous	-
20	Y0059222		Light, Indicator (125v)		Appelez-nous	-
21	0316650		Heat Shield, Control Panel		Appelez-nous	-
22	Y0315614		Control, Electronic Range		Appelez-nous	-
23	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
24	316189B		Membrane, Switch Panel (blk)				$ 184.23
25	WP74011243		Switch, Infinite   (Replaces: Y0315563)				$ 115.88
26	316359B		Pnl, Control-screened (black)		Appelez-nous	-
27	316057B		Kit,end Cap/hinge-blk		Appelez-nous	-
28	316160B		Switch, Rocker		Appelez-nous	-
29	Y0316546		Screw, No.8-32 X 3/16``		Appelez-nous	-
30	316368B		Knob, Infinite Sw (blk)		Appelez-nous	-
31	Y0316265		Lens, Indicator		Appelez-nous	-
32	Y0316661		Screw, No.8-32 X 3/8``		Appelez-nous	-
33	316369B		Knob, Top Burner (10 Pos)		Appelez-nous	-
NI	Y0061164		Screw No.8 - 18 X .250		Appelez-nous	-
NI	Y0094682		Screw Type 23 6-32x5/16		Appelez-nous	-
NI	Y0076035		Screw, No.8-18 X 7/8 Pph		Appelez-nous	-
NI	0316347		Harness, Input (connector)		Appelez-nous	-
NI	Y0092373		Screw, No.6-20 X .375 Panhd(blk)		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65

    View Diagram in Separate Window       Print Part List
