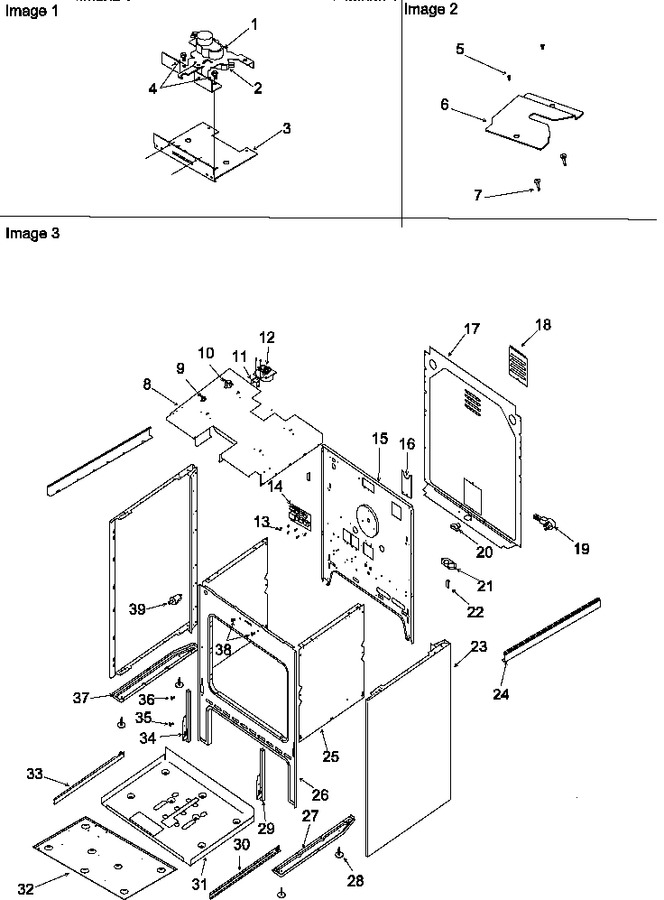

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0315908		Latch, Auto		Appelez-nous	-
2	0316767		Switch		Appelez-nous	-
3	Y0315910		Bracket, Latch Mounting		Appelez-nous	-
4	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
5	Y0041813		Screw Cabinet Trim		Appelez-nous	-
6	Y0315560		Brkt, Range Anti-tip		Appelez-nous	-
7	Y0301555		Anchor, Plastic		Appelez-nous	-
8	Y0316522		Retainer, Top Insulation		Appelez-nous	-
9	Y0042045		Limit Control-upper Oven-200		Appelez-nous	-
10	Y0316699		Thermostat, High Limit		Appelez-nous	-
11	Y0308923		Bracket, Fan Mtg		Appelez-nous	-
12	Y0308607		Blower, Erc Clg		Appelez-nous	-
13	Y0300662		Support		Appelez-nous	-
14	Y0315615		Board, Relay Erc		Appelez-nous	-
15	Y0315778		Retainer, Rear Insul		Appelez-nous	-
16	0316382		Brkt, Vent Tube		Appelez-nous	-
17	Y0307342		Cover, Rear		Appelez-nous	-
18	Y0058435		Access Plate, Rear		Appelez-nous	-
19	Y0308896		Cord, Power		Appelez-nous	-
20	Y0309078		Connector, Conduit		Appelez-nous	-
21	0058311		Plate, Main Inlet Wire		Appelez-nous	-
22	Y0091587		Cable, Clip Esm		Appelez-nous	-
23	317036W		Panel, Side (wht)		Appelez-nous	-
24	316325W		Filler Strip (wht)		Appelez-nous	-
25	0304282		Retainer, Insulation (side)		Appelez-nous	-
26	317149CG		Frame-front (cg)		Appelez-nous	-
27	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
28	314187B		Leg,leveling Xxx		Appelez-nous	-
29	Y0317068		Kit, Door Hinge(rh-ss)		Appelez-nous	-
30	0314663		Track, Storage Dwr Rh		Appelez-nous	-
31	Y0309061		Retainer, Insulation (bottom)		Appelez-nous	-
32	Y0315146		Shield, Heat		Appelez-nous	-
33	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
34	Y0317067		Kit, Door Hinge(lh-hs)		Appelez-nous	-
35	WP4159193		Screw, No.10-32x 5/16 Pan Ph H   (Replaces: Y0317065)				$ 4.29
36	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y0317066)			Immediately	$ 6.85
37	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
38	Y0305004		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
39	Y0316882		Switch- Oven Door		Appelez-nous	-
NI	Y0316004		Screw, No.10-32x1/2 (pan Ph Hd)		Appelez-nous	-
