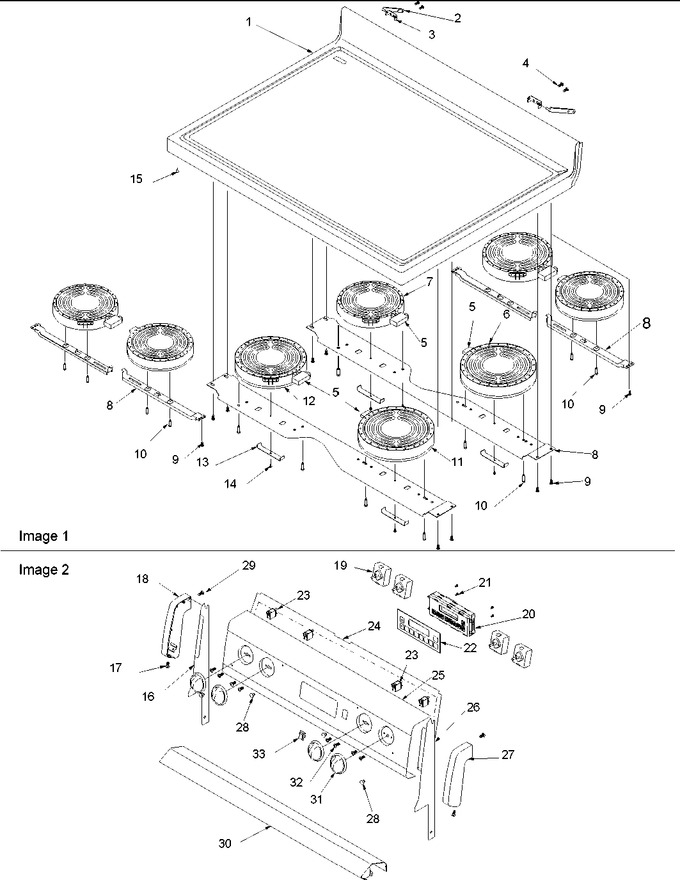

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31722305WW		Assy,top & Glass(white-white)		Appelez-nous	-
2	Y0315931		Pin, Hinge		Appelez-nous	-
3	Y0306150		Brkt, Hinge Strap Mtg		Appelez-nous	-
4	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
5	31846201		Limiter		Appelez-nous	-
6	W10823699		Element, Ribbon (1500w)   (Replaces: 31794601)			Immediately	$ 145.67
7	W10823708		Element, Ribbon (2000w)   (Replaces: 31794501)				$ 307.60
8	31720701		Bracket, Element		Appelez-nous	-
9	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
10	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
11	31794801		Element, Ribbon (2500w)		Appelez-nous	-
12	31794701		Element, Ribbon (1200w)		Appelez-nous	-
15	31717001		Spacer, Snap-in		Appelez-nous	-
16	315877W		Bkgd. Support-lh		Appelez-nous	-
17	31750422		Screw, No.8-18 X 1/4 P Trs Hd		Appelez-nous	-
18	315843W		End Cap Lh				$ 29.45
19	WP74011243		Switch, Infinite   (Replaces: 31891202)				$ 115.88
20	Y0315613		Erc, Elect Slew Csa		Appelez-nous	-
21	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-
22	315851W		Overlay, Erc3 Mylar		Appelez-nous	-
23	31722801		Light, Indicator (125v)		Appelez-nous	-
24	0315887		Cover, Upper Rear		Appelez-nous	-
25	31749804W		Panel, Bkgd		Appelez-nous	-
26	315876W		Bkgd. Support-rh		Appelez-nous	-
27	315841W		End Cap Rh				$ 24.87
28	Y0316265		Lens, Indicator		Appelez-nous	-
29	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
30	31722704B		Shield, Bkgd Trim Heat		Appelez-nous	-
31	31760102W		Knob, Infinite Switch (wht)		Appelez-nous	-
32	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
33	301491W		Switch, Rocker		Appelez-nous	-
NI	Y0316505		Harness, Element		Appelez-nous	-
NI	Y0316502		Harness, Wire (radiant Elem Lh		Appelez-nous	-
