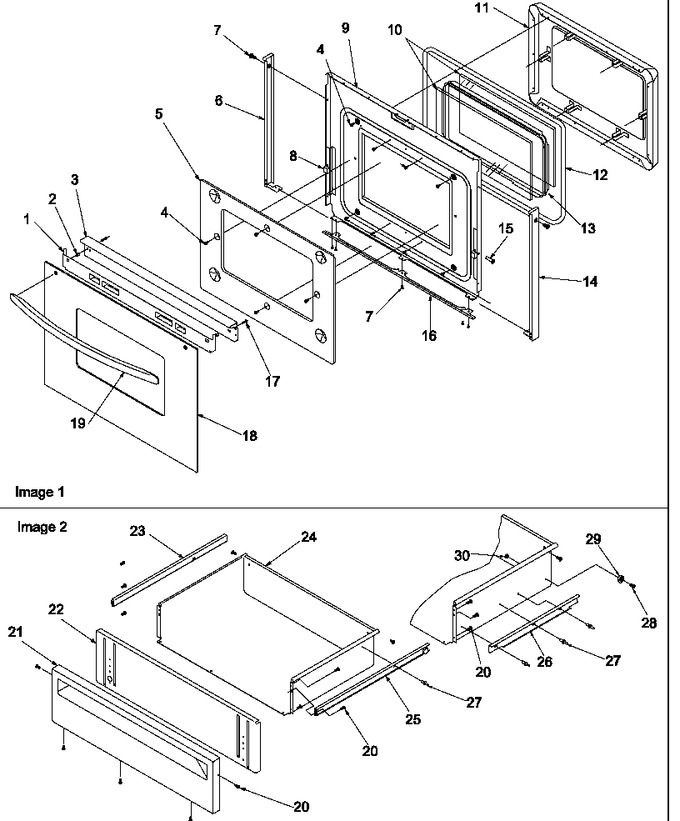

ZRTSC8650E (BOM: P1130672N E) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	31833201	Assy, Glass Heat Shield	Appelez-nous	-
2	309461B	Bushing, Handle (blk)	Appelez-nous	-
3	31782102B	Trim, Door Top	Appelez-nous	-
4	WP693995	Screw, No.8-18 X 3/8 P Hex Wsh T (Replaces: 31750432)		Immediately	$ 6.47
5	Y0309068	Shield, Heat	Appelez-nous	-
6	309523B	End Cap, Door (lt-blk)	Appelez-nous	-
7	31750706	Screw, No.8 X .375 Wafer Hd(blk)	Appelez-nous	-
8	Y0309627	Bumper, Rubber	Appelez-nous	-
9	317023CG	Backer, Oven Door	Appelez-nous	-
10	Y0317019	Glass, Door	Appelez-nous	-
11	317021CG	Pad, Oven Door	Appelez-nous	-
12	31715902	Gasket, Oven Door (67``)			$ 13.97
13	Y0317020	Frame, Window Pack	Appelez-nous	-
14	309522B	End Cap, Door (rt-blk)	Appelez-nous	-
15	Y0302648	Rivet, Pop	Appelez-nous	-
16	309460B	Support, Glass (blk)	Appelez-nous	-
17	Y0316793	Screw, 10-32 X 1.250`` Pan Hd	Appelez-nous	-
18	316238B	Glass, Oven Door (blk)	Appelez-nous	-
19	31689501B	Handle, Oven Door (blk)	Appelez-nous	-
20	W11245710	Screw, No.8-18x.406-.344 Waferhd (Replaces: 31750701)		Immediately	$ 12.65
21	309176B	Panel, Drawer (blk)	Appelez-nous	-
22	309178B	Liner, Drawer Panel (blk)	Appelez-nous	-
24	31733502W	Drawer, Storage (wht)	Appelez-nous	-
26	31733301	Track, Storage Drawer	Appelez-nous	-
27	Y0097822	Rivet, Pop	Appelez-nous	-
28	31750717	Bolt, Shoulder 10-32	Appelez-nous	-
29	31733401	Roller, Drawer			$ 5.75
30	WP3400029	Nut, Hex Keps No.10-32 (Replaces: 31750103)		Immediately	$ 6.98
99	Y0309434	Label, Cleaning Caution Fr/eng	Appelez-nous	-
99	W11245710	Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: 31750410)		Immediately	$ 12.65
99	W11245710	Screw, No.8-18x.406-.344 Waferhd (Replaces: 31750701)		Immediately	$ 12.65
99	0043184	Tape, Foam	Appelez-nous	-
99	Y0309772	Insulation,oven Door	Appelez-nous	-
