SELECT A DIAGRAM

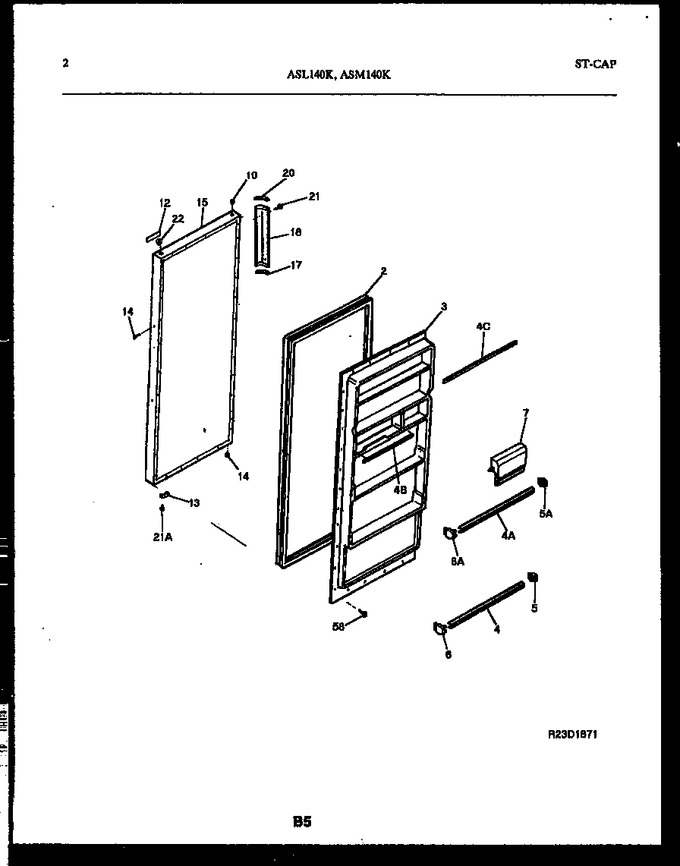

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303276686		Gasket-refr Door, Magnetic		Appelez-nous	-
3	5303276687		Panel-inner Door		Appelez-nous	-
4	5303276689		Rack-door		Appelez-nous	-
5	5303276690		Support-door Rack Rh		Appelez-nous	-
6	5303276691		Support-door Rack, Lh		Appelez-nous	-
7	530327149		Door-dairy		Appelez-nous	-
10	5308000176		Plug-button, Wheat, Hinge Brg Hole		Appelez-nous	-
12	5303276130		Frame-nameplate, W/ Tape		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	5308000180		Plug-button, Wheat, Handle/dr Stop		Appelez-nous	-
15	53039170002		Panel-refr Door, Wheat		Appelez-nous	-
17	5308010238		Handle End		Appelez-nous	-
18	5308009875		Handle-door, Teakwood Vinyl		Appelez-nous	-
20	5308010239		Handle End		Appelez-nous	-
21	5308013645		Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2		Appelez-nous	-
22	3206153		Bearing-hinge (8)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*58771	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
4A	5303276688		Rack-door		Appelez-nous	-
4B	5303276685		Rack-door, Short		Appelez-nous	-
4C	5303276684		Rack-door, (2)		Appelez-nous	-
5A	5303274518		Support-door Rack Rh				$ 17.33
6A	5303274519		Support-door Rack Lh				$ 47.04

    View Diagram in Separate Window       Print Part List
