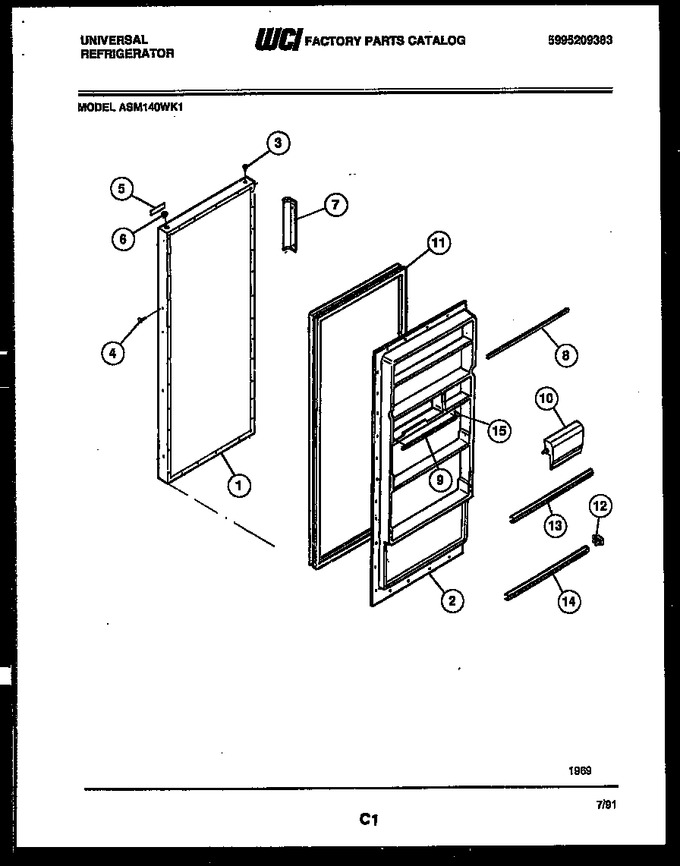

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303917003		Outer Panel-almond		Appelez-nous	-
2	5303276687		Inner Panel		Appelez-nous	-
3	5303001308		Plug, Hinge, Almond		Appelez-nous	-
4	5308000181		Plug, Handle, Almond		Appelez-nous	-
5	5303276130		Nameplate Assy		Appelez-nous	-
6	3206153		Bearing-hinge (4)		Appelez-nous	-
7	5308009875		Handle		Appelez-nous	-
8	5303276684		Upper Door Rack (2)		Appelez-nous	-
9	5303276688		Rack Door-small		Appelez-nous	-
10	5303276149		Door-dairy		Appelez-nous	-
11	5303276686		Gasket-door		Appelez-nous	-
12	5303276690		Support-door Rack Rh		Appelez-nous	-
13	5303276685		Rack Door-middle		Appelez-nous	-
14	5303276689		Rack Door-lower		Appelez-nous	-
15	5303274518		Support-door Rack Rh				$ 17.33
*47828	5303274519		Support-door Rack Lh				$ 47.04
12A	5303276691		Support-door Rack Lh (non-illustrated)		Appelez-nous	-
1A	5308000255		Stop-door (non-illustrated)				$ 42.20
1B	5308011745		Screw				$ 10.38
2A	5308002748		Screw		Appelez-nous	-
7A	5308013645		Screw-handle Mounting (2) (non-illustrated)		Appelez-nous	-
