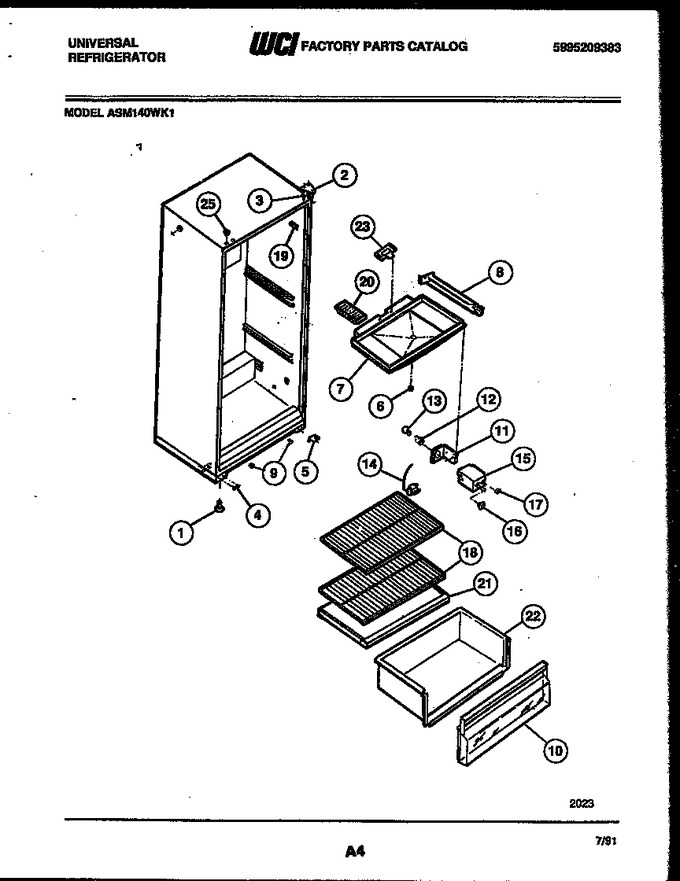

01 - Cover
02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206141 | Screw-leveling, (2) |
|
$ 11.50 | |||||
| 2 | 3206100 | Hinge, Top |
|
- | |||||
| 2 | 5308000007 | Washer-top Hinge (non-illustrated) |
|
- | |||||
| 2 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 3 | 5303001037 | Shim, Top Hinge |
|
$ 12.39 | |||||
| 4 | 5308012296 | Plate-tapping (2) (non-illustrated) |
|
$ 47.44 | |||||
| 4 | 3206135 | Cover-lwr Hinge |
|
- | |||||
| 5 | 5303001038 | Washer-bottom Hinge (non-illustrated) |
|
$ 13.34 | |||||
| 5 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 5 | 3206136 | Bracket-bottom Hinge |
|
- | |||||
| 5 | 5303001321 | Pin-bottom Hinge (non-illustrated) |
|
$ 17.25 | |||||
| 6 | 08009779 | Stopper-rubber |
|
- | |||||
| 7 | 5300179982 | Gasket-tray (non-illustrated) |
|
- | |||||
| 7 | 5317766801 | Dip Tray |
|
- | |||||
| 8 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 8 | 5300163217 | Support-tray Rh |
|
- | |||||
| 9 | 3206142 | Plug-button |
|
- | |||||
| 10 | 3206106 | Front-crisper Pan |
|
- | |||||
| 11 | 5300163210 | Bracket-control |
|
- | |||||
| 11 | 5308010253 | Screw-bracket Mtg (non-illustrated) |
|
- | |||||
| 12 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 12 | 08003581 | Screw-socket Mtg (non-illustrated) |
|
- | |||||
| 13 | 5303001179 | Light Bulb |
|
- | |||||
| 14 | 5316266703 | Control-temperature |
|
- | |||||
| 14 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 15 | 5303209951 | Box-control |
|
- | |||||
| 15 | 08003581 | Screw-mounting (2) (non-illustrated) |
|
- | |||||
| 16 | 5303209953 | Knob-control |
|
- | |||||
| 17 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 18 | 5303209934 | Shelf-full (2) |
|
- | |||||
| 19 | 5303202336 | Corner-trim (white) |
|
- | |||||
| 19 | 5303202338 | Corner Trim, Wheat |
|
- | |||||
| 19 | 5303202340 | Corner Trim-almond |
|
- | |||||
| 20 | 5303001324 | Tray-ice (2) |
|
- | |||||
| 21 | 5303209935 | Cover-pan |
|
- | |||||
| 22 | 5303209937 | Pan - Crisper |
|
$ 231.16 | |||||
| 23 | 5300179612 | Plate-baffle |
|
- | |||||
| 23 | 5300183114 | Clip-canoe (2) (non-illustrated) |
|
- | |||||
| 23 | 5300179540 | Label-baffle (non-illustrated) |
|
- | |||||
| 25 | 5303001389 | Plug - Hinge - Almond |
|
- | |||||
| 25 | 5303001388 | Plug - Hinge - White |
|
$ 2.60 | |||||
| 25 | 5303001678 | Plug - Hinge - Wheat |
|
- |
