SELECT A DIAGRAM

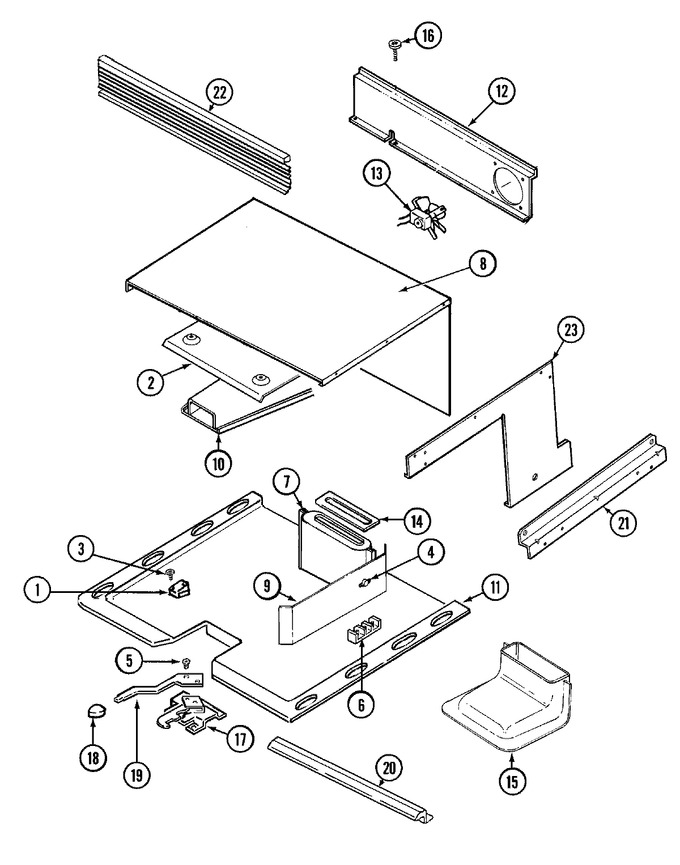

01 - Body
02 - Door
03 - Door (ser. Pre. 14)
04 - Gas Controls
05 - Internal Controls
06 - Microwave
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7403P361-60 | Switch, Door Latch | 01 |
|
- | ||||
| 1 | 7403P361-60 | Switch, Door Latch | 11 |
|
- | ||||
| 2 | 3604F166-45 | Shield, Heat | 01 |
|
- | ||||
| 3 | 7101P130-60 | Screw, Latch Switch | 01 |
|
- | ||||
| 3 | 7101P330-60 | Screw, Switch | 11 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 4 | 7403P249-60 | Switch, Hi Limit | 01 |
|
- | ||||
| 5 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 01 |
|
$ 4.29 | ||||
| 6 | 7118P017-60 | Screw | 01 |
|
- | ||||
| 6 | 7401P037-60 | Block, Terminal | 01 |
|
- | ||||
| 7 | 4006D131-47 | Riser, Duct Assy. | 01 |
|
- | ||||
| 8 | 4005F426-51 | Cover, Top | 01 |
|
- | ||||
| 9 | 3604F197-51 | Shield, Riser | 01 |
|
- | ||||
| 10 | 4006D101-45 | Duct Assy. | 01 |
|
- | ||||
| 10 | 3807F452-51 | Support, Duct | 01 |
|
- | ||||
| 11 | 74001793 | Retainer, Top Insulation | 11 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 11 | 3804F111-51 | Retainer, Top Insulation | 01 |
|
- | ||||
| 12 | 4001F083-51 | Housing, Fan | 01 |
|
- | ||||
| 13 | 7427P010-60 | Fan Assy. | 01 |
|
- | ||||
| 14 | 7201P048-60 | Gasket, Flue Top | 01 |
|
- | ||||
| 15 | 4006W117-45 | Box, Flue | 01 |
|
- | ||||
| 16 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 17 | 4804F028-60 | Insulation, Latch Assy. | 01 |
|
- | ||||
| 17 | 8002P027-60 | Latch Assy. | 01 |
|
- | ||||
| 17 | 74001804 | Insulator, Latch Switch | 11 |
|
- | ||||
| 18 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 18 | 7701P132-60 | Handle, Door Latch (blk) | 01 |
|
- | ||||
| 19 | 8009P020-60 | Lever | 01 |
|
- | ||||
| 19 | 8009P028-60 | Lever, Latch | 11 |
|
- | ||||
| 20 | 7756P087-60 | Extrusion, Microwave (blk) | 01 |
|
- | ||||
| 21 | 3801F287-51 | Brkt, Mtg-r | 01 |
|
- | ||||
| 21 | 3801F286-51 | Bracket, M/wave Mtg. (lt) | 01 |
|
- | ||||
| 22 | 7756P092-60 | Extrusion, Vent Grill (blk) | 01 |
|
- | ||||
| 23 | 4005F419-51 | Cover, Side (lt) | 01 |
|
- | ||||
| 23 | 4005F418-51 | Cover, Side (rt) | 01 |
|
- | ||||
| 23 | 7402P046-60 | Cord, Power | 01 |
|
- |
