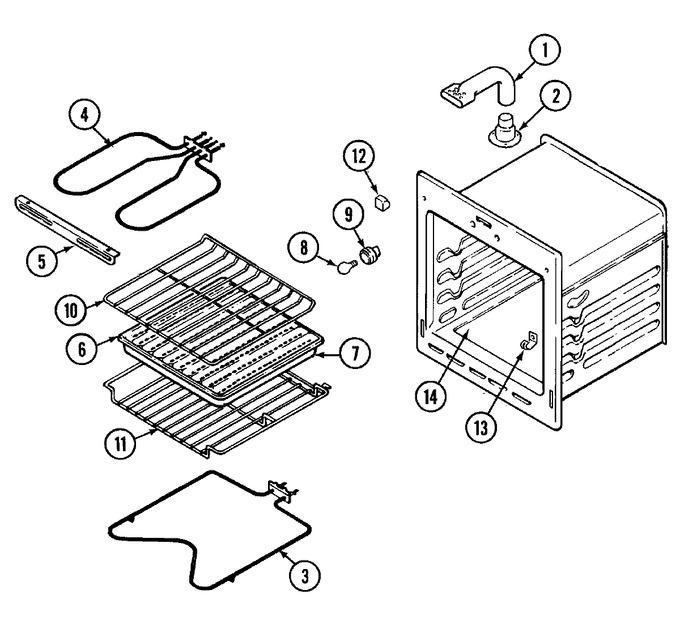

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P022-60		Tube, Oven Vent	10	Appelez-nous	-
2	7101P287-60		Screw, Metal Grounding	10			$ 12.03
2	74001860		Vent, Oven	10	Appelez-nous	-
3	WPY04000066		Element, Bake (2400w)   (Replaces: 74004073)	15		Immediately	$ 70.53
3	7101P287-60		Screw, Metal Grounding	10			$ 12.03
3	WPY04000066		Element, Bake   (Replaces: 7406P075-60)	10		Immediately	$ 70.53
4	7406P182-60		Element, Broil   (Replaces: 74004232)	14	Appelez-nous	-
4	7101P287-60		Screw, Metal Grounding	10			$ 12.03
4	WPY04000048		Element, Broil   (Replaces: 7406P076-60)	10			$ 160.58
5	7101P287-60		Screw, Metal Grounding	10			$ 12.03
5	3807F176-19		Support, Broil Element	10	Appelez-nous	-
6	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
7	Y3401F02019		Pan, Broil	10	Appelez-nous	-
8	3604F037-44		Cover	10			$ 30.78
8	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
8	7101P287-60		Screw, Metal Grounding	10			$ 12.03
9	7408P035-60		Receptacle, Oven Bulb	10			$ 30.71
10	7801P005-60		Rack	10	Appelez-nous	-
11	7801P007-60		Rack, Offset	10	Appelez-nous	-
12	8003P009-60		Bumper, Door (square)	10	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	4005F011-35		Cover, Cap Hole	10	Appelez-nous	-
13	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	10		Immediately	$ 11.07
14	2205F003-19		Bottom, Oven	10	Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
15	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
15	7111P007-60		Clamp, Wire	10	Appelez-nous	-
