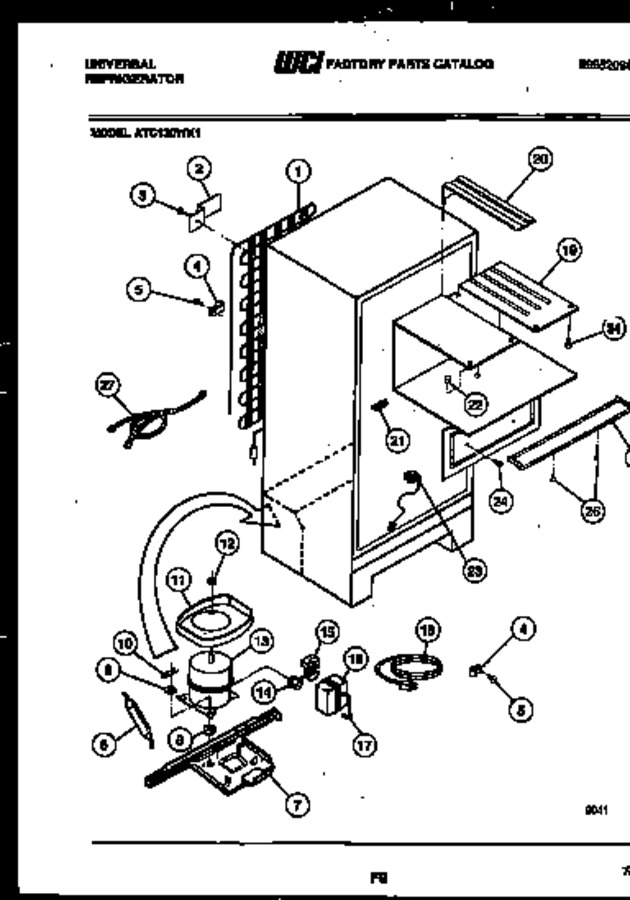

04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08000997		Condenser		Appelez-nous	-
2	5303001342		Bracket-condenser Mounting (4)		Appelez-nous	-
3	5308000039		Screw		Appelez-nous	-
3	5308009617		Washer, No. 10 Ext Tooth Lock (non-illustrated)		Appelez-nous	-
4	5303001199		Clamp				$ 65.92
5	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
6	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
7	3206126		Plate-compressor Mounting		Appelez-nous	-
8	5308008778		Grommet (4)		Appelez-nous	-
9	5308003633		Washer (3)				$ 35.67
10	5308003596		Clip (3)				$ 6.62
11	5303916001		Pan Retainer Kit (non-illustrated)				$ 78.75
11	5308017610		Sound Tape (non-illustrated)		Appelez-nous	-
11	5300184715		Defrost Pan		Appelez-nous	-
12	5303001348		Lock Nut, Pan Mtg				$ 2.73
13	5303916022		Compressor With Electricals		Appelez-nous	-
14	5303270406		Overload		Appelez-nous	-
15	216594300		Relay   (Replaces: 3204486)				$ 28.92
16	5303006411		Cover, Terminal		Appelez-nous	-
17	5303006412		Strap, Cover Mtg		Appelez-nous	-
18	5316254901		Service Cord		Appelez-nous	-
19	5303271496		Evaporator		Appelez-nous	-
20	3200734		Trim-evaporator Center		Appelez-nous	-
21	08009792		Clamp-control Bulb		Appelez-nous	-
21	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
22	5303001380		Screw		Appelez-nous	-
22	08006983		Spacer-divider		Appelez-nous	-
23	5303211511		Heater-tube		Appelez-nous	-
24	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
25	5303211504		Molding-evaporator		Appelez-nous	-
26	5303001380		Screw		Appelez-nous	-
27	5303211512		Wiring Harness		Appelez-nous	-
*48269	3916557		Hot Tube Repair Kit				$ 360.78
