SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door (9512xux)


04 - Internal Controls


05 - Oven


06 - Wiring Information

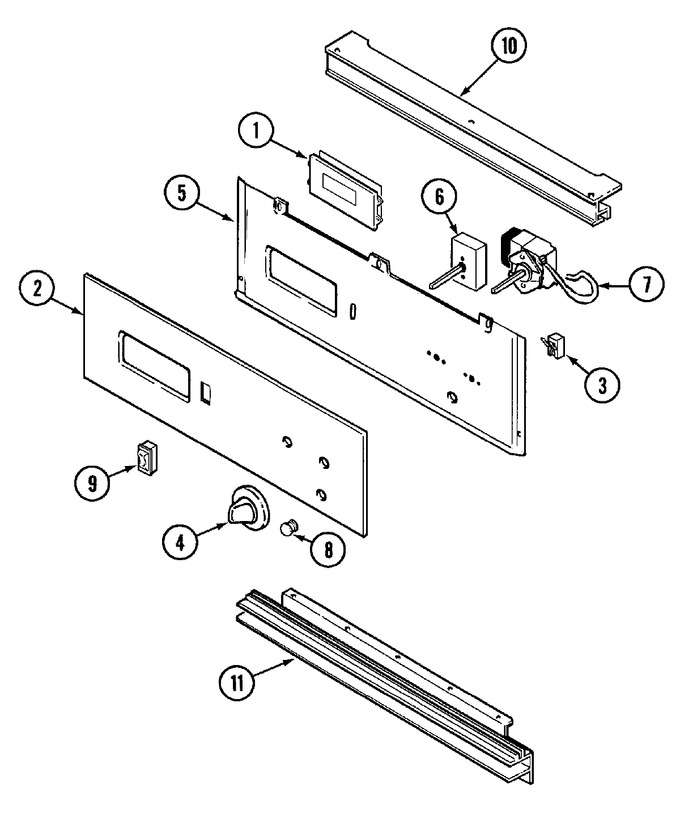

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10799767		Clock (blk)   (Replaces: 74004946)	15			$ 493.35
1	7101P075-60		Screw	10	Appelez-nous	-
1	W10799767		Clock (wht)   (Replaces: 74004825)	16			$ 493.35
1	7602P118-60		Clock (blk)	10	Appelez-nous	-
2	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
2	8010P050-60		Felt, Disc	10	Appelez-nous	-
2	74001836		Panel, Control (blk)	10	Appelez-nous	-
3	W10852510		Light, Indicator   (Replaces: 7407P102-60)	10			$ 106.11
4	7711P291-60		Knob (chr)	10	Appelez-nous	-
5	74001837		Plate, Support	10	Appelez-nous	-
6	7403P172-60		Switch, Selector	10	Appelez-nous	-
6	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
7	7404P049-60		Thermostat, Oven	10			$ 113.60
7	7101P279-60		Screw W/washer	10	Appelez-nous	-
8	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	10			$ 6.73
9	7403P067-60		Switch, Rocker (blk)   (Replaces: 7403P102-60)	10			$ 91.35
10	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
10	74001854		Extrusion, Top Front (blk)	10	Appelez-nous	-
11	7756P071-60		Extrusion, Vent	10	Appelez-nous	-
11	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
12	74001840		Harness, Wire (cntrl Pnl)	10	Appelez-nous	-
13	74005224		Manual, Use & Care	15	Appelez-nous	-
13	74001838		Manual, Use & Care	10	Appelez-nous	-
13	8112P322-60		Manual, Use & Care	18	Appelez-nous	-
13	W10169637		Manual, Use & Care	19	Appelez-nous	-
14	16000329		Guide, Quick Ref. - Magic Chef	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
