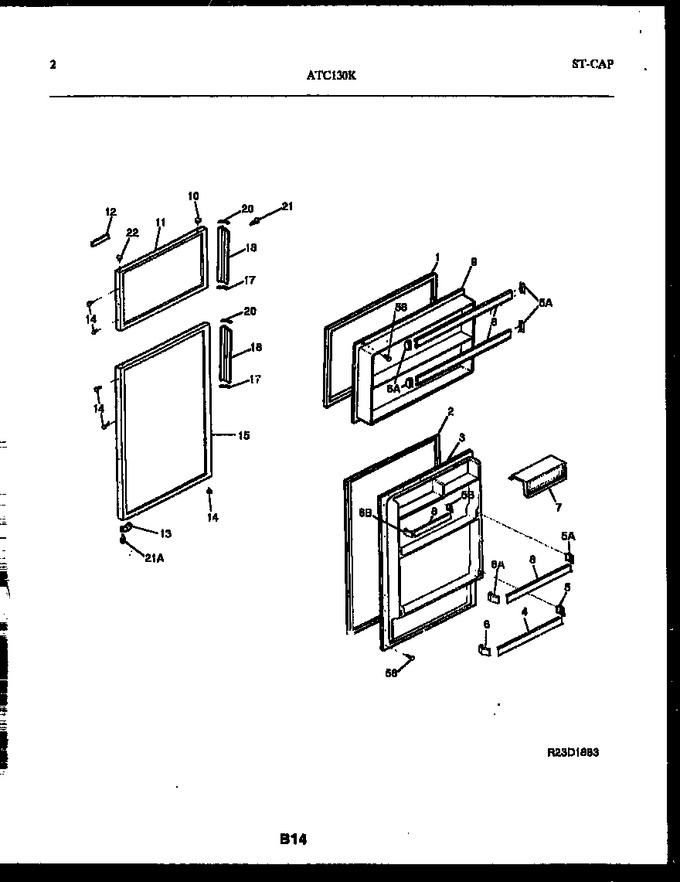

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001304 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303270902 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303276182 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303272143 | Rack-door, Wide |
|
- | |||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 5303276149 | Door-dairy |
|
- | |||||
| 8 | 5303276153 | Rack-door, Narrow |
|
- | |||||
| 9 | 5303271486 | Panel-inner Door, Frzr |
|
$ 312.17 | |||||
| 10 | 5308000176 | Plug-button, Wheat, Hinge Brg Hole |
|
- | |||||
| 11 | 5303916964 | Panel-frzr Door, Wheat |
|
- | |||||
| 12 | 5303276130 | Frame-nameplate, W/ Tape |
|
- | |||||
| 13 | 5308000255 | Door Stop, Frzr/refr |
|
$ 42.20 | |||||
| 14 | 5308000180 | Plug-button, Wheat, Handle/dr Stop |
|
- | |||||
| 15 | 5303916961 | Panel-refr Door, Wheat |
|
- | |||||
| 17 | 5308010238 | Handle End |
|
- | |||||
| 18 | 5308009875 | Handle-door, Teakwood Vinyl, Refr/frzr, (2) |
|
- | |||||
| 20 | 5308010239 | Handle End |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *58822 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 5A | 3206165 | Support-door Rack, Rh |
|
Immediately | $ 8.19 | ||||
| 5B | 3206156 | Support-door Rack, Rh |
|
- | |||||
| 6A | 3206166 | Support-door Rack, Lh |
|
Immediately | $ 9.93 | ||||
| 6B | 3206157 | Support-door Rack, Lh |
|
- |
