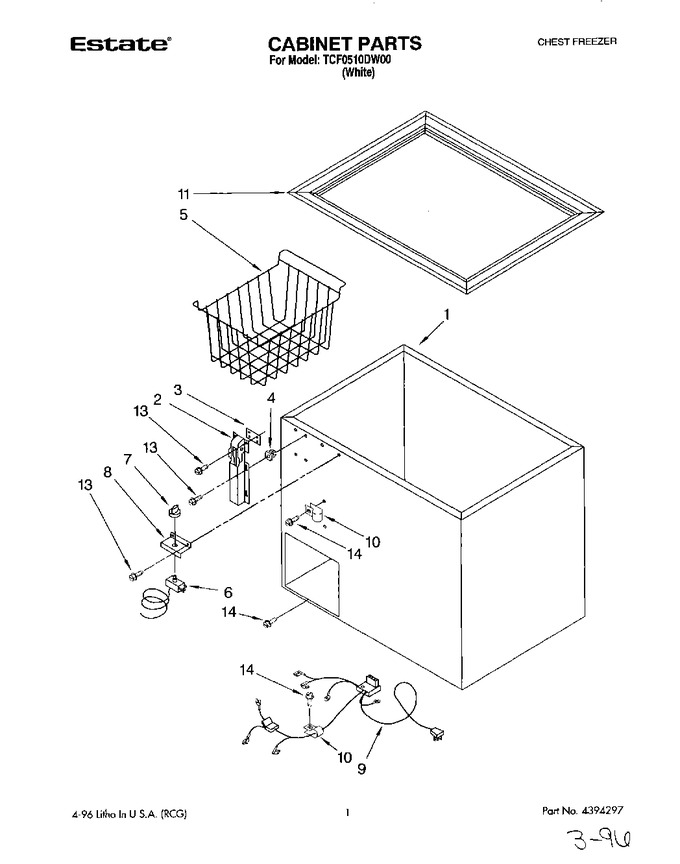

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 4356514 | Hinge Assembly |
|
- | |||||
| 3 | 1-17548-006 | Hinge Spacer (Replaces: 4356369) |
|
$ 18.64 | |||||
| 4 | 4356321 | Grommet, Plastic |
|
$ 11.72 | |||||
| 5 | 4356346 | Wire Basket (optional) |
|
- | |||||
| 6 | 4356567 | Thermostat |
|
- | |||||
| 7 | 4356568 | Thermostat, Knob |
|
- | |||||
| 8 | 4356557 | Thermostat, Control Bracket |
|
- | |||||
| 9 | 4356495 | External, Wiring Harness |
|
- | |||||
| 10 | 488946 | Plastic, Clip (2) (Replaces: 4356328) |
|
$ 18.41 | |||||
| 11 | 4356566 | Breaker Strip |
|
- | |||||
| 13 | 4356491 | Screw |
|
- | |||||
| 14 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 14 | 4356489 | Rivet Kit (60) |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: 4356496) |
|
Immediately | $ 12.62 | ||||
| 14 | 350942 | Enamel, White (13 Oz. Spray Can) |
|
$ 80.69 | |||||
| 14 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| LIT4356562 | Energy Label |
|
- | ||||||
| LIT4356394 | Use & Care Guide |
|
- |
