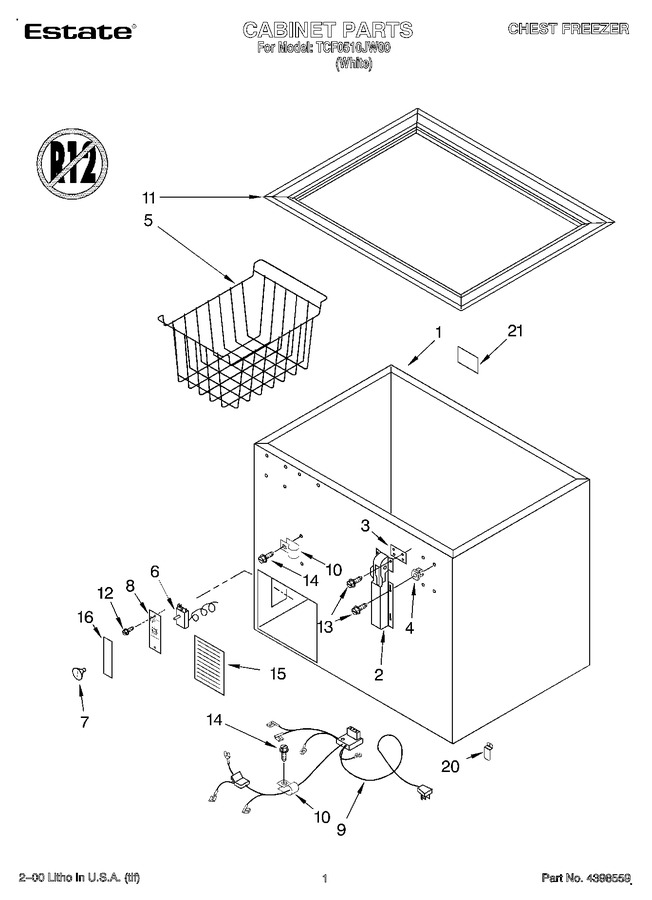

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 4356745 | Hinge Assembly |
|
- | |||||
| 3 | 1-17548-006 | Hinge Spacer (Replaces: 4356463) |
|
$ 18.64 | |||||
| 4 | 4356321 | Grommet, Plastic |
|
$ 11.72 | |||||
| 5 | 4356346 | Wire Basket (optional) |
|
- | |||||
| 6 | WP4-35940-001 | Thermostat (Replaces: 4356670) |
|
$ 148.16 | |||||
| 7 | 4356710 | Thermostat, Knob |
|
- | |||||
| 8 | W10682894 | Control Box (Replaces: 4356679) |
|
- | |||||
| 9 | 4356588 | External, Wiring Harness |
|
- | |||||
| 10 | 488946 | Plastic, Clip (2) (Replaces: 4356643) |
|
$ 18.41 | |||||
| 11 | 4356681 | Breaker Strip |
|
- | |||||
| 12 | 3-24004-049 | Screw (Replaces: 4356583) |
|
- | |||||
| 13 | 4356491 | Screw |
|
- | |||||
| 14 | W11233072 | Screw (Replaces: 4356496) |
|
Immediately | $ 12.62 | ||||
| 15 | 4356712 | Access Panel |
|
- | |||||
| 16 | 4356584 | Insert, Control |
|
- | |||||
| 20 | 4356728 | Clip |
|
- | |||||
| 21 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 21 | 4356705 | Nameplate |
|
- | |||||
| 21 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 21 | 4356489 | Rivet Kit (60) |
|
- | |||||
| 21 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| LIT4356762 | Energy Label |
|
- | ||||||
| LIT4356394 | Owner`s Manual |
|
- |
