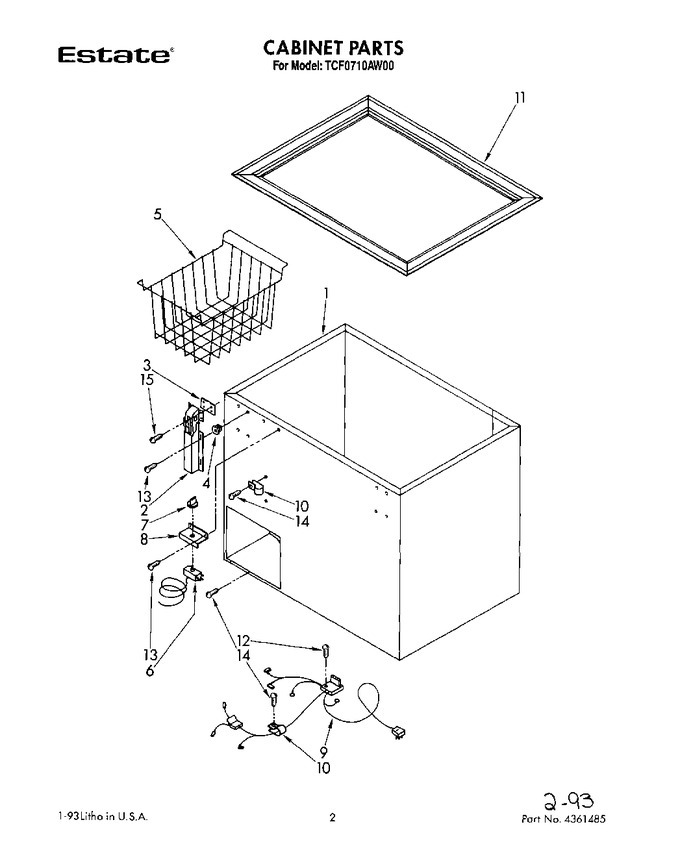

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 4356490 | Hinge Assembly (Replaces: 4356427) |
|
$ 211.36 | |||||
| 3 | 1-17548-006 | Hinge, Spacer (Replaces: 4356320) |
|
$ 18.64 | |||||
| 4 | 4356321 | Grommet, Plastic |
|
$ 11.72 | |||||
| 5 | 8210434A | Wire Basket (Replaces: 4356354) |
|
$ 77.93 | |||||
| 6 | 4356323 | Thermostat |
|
- | |||||
| 7 | 4356424 | Thermostat, Knob |
|
- | |||||
| 8 | 4356423 | Thermostat, Control Bracket |
|
- | |||||
| 9 | 4356347 | External, Wiring Harness |
|
- | |||||
| 10 | 488946 | Plastic, Clip (2) (Replaces: 4356328) |
|
$ 18.41 | |||||
| 11 | 4356422 | Breaker Strip |
|
- | |||||
| 12 | 487980 | Screw |
|
- | |||||
| 13 | WP308685 | Screw (Replaces: 308685) |
|
Immediately | $ 7.08 | ||||
| 14 | WP488787 | Screw (Replaces: 488787) |
|
$ 9.52 | |||||
| 15 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 15 | 350942 | Enamel, White (13 Oz. Spray Can) |
|
$ 80.69 | |||||
| 15 | 489181 | Screw |
|
- | |||||
| 15 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| LIT4631485 | Parts List |
|
- | ||||||
| LIT4356428 | Owner`s Manual |
|
- |
